Vat Included
Key Features
* Max. 2M buffer memory built-in chip.
* Auto-negotiation back pressure flow control for full duplex IEEE802.3 X and half duplex.
* Automatic identification of MDI/MDI-X cross line
* High-performance 1.4Gbps memory bandwidth.
* LED display for PWR, link/activity, full/half duplex,100M,1000M
* Forward 1600 bytes packet for management;
* max. transmission distance can be 120km.
Read More Less

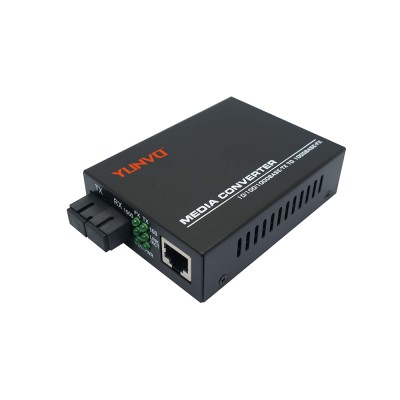

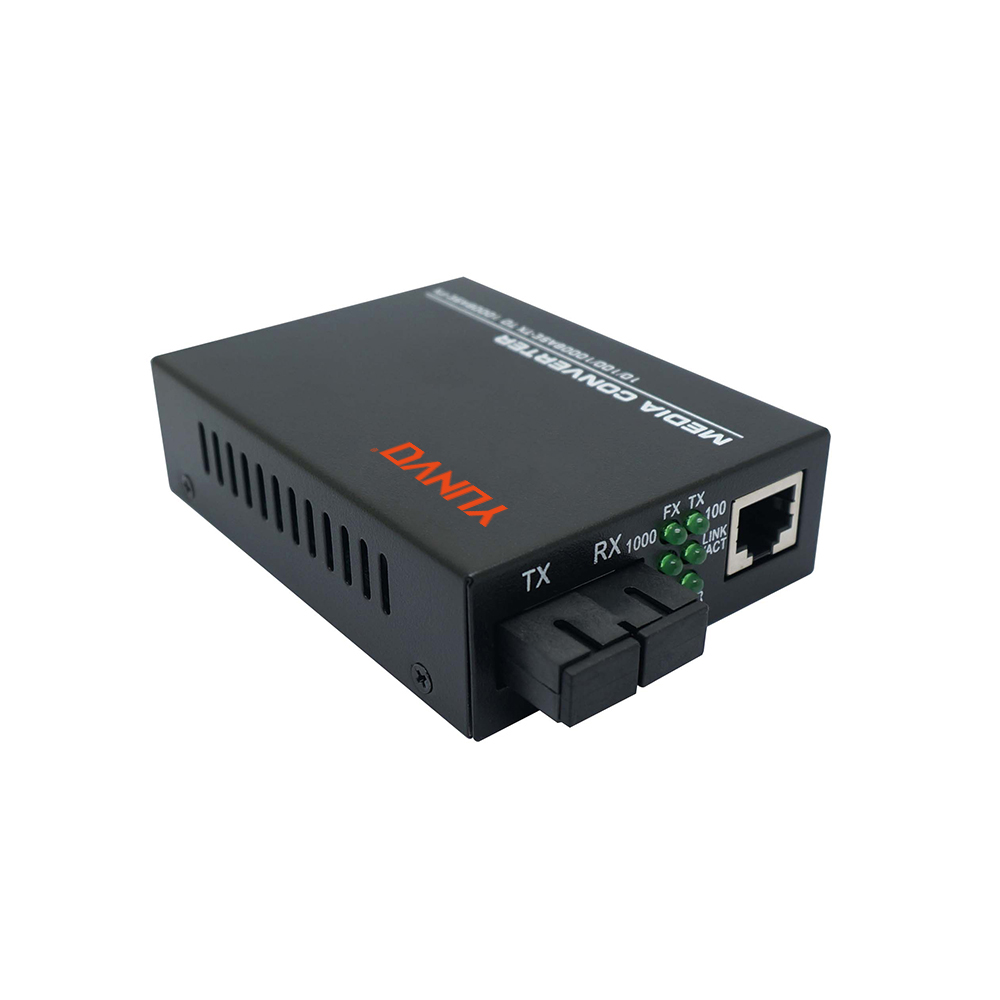

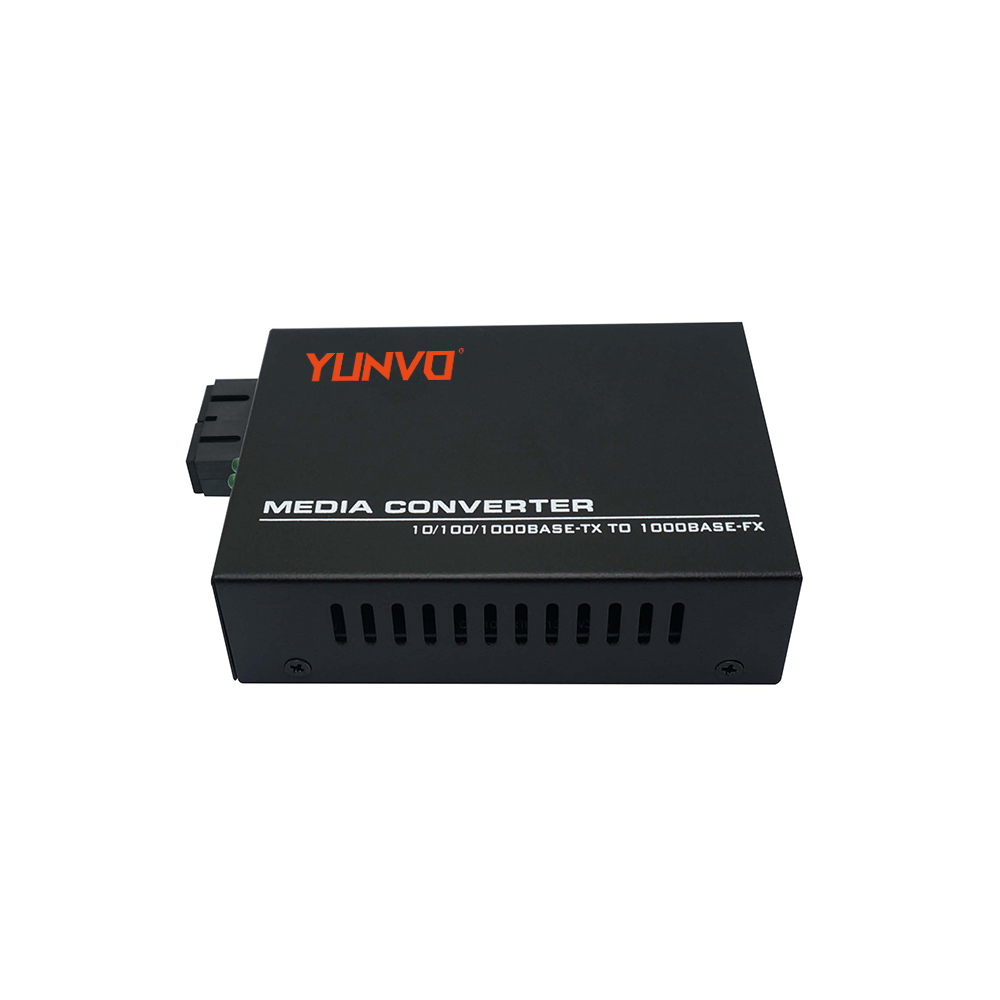

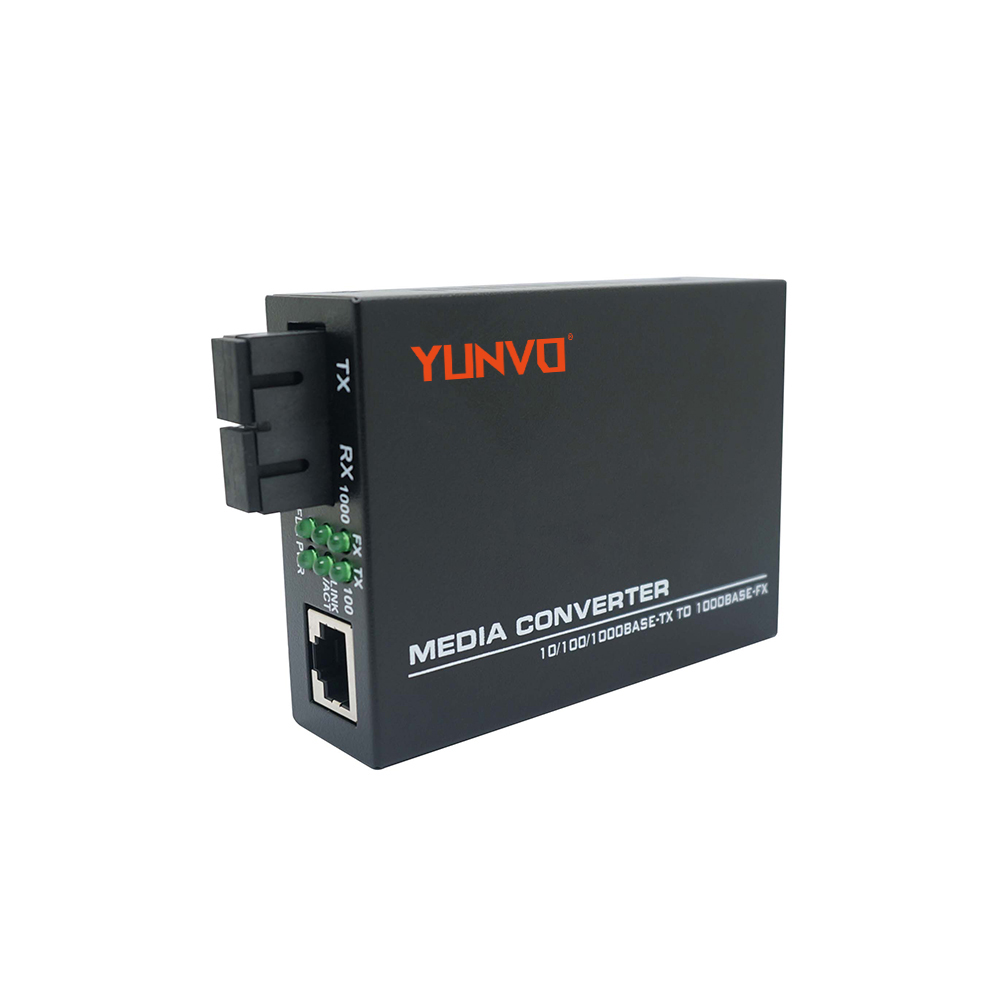

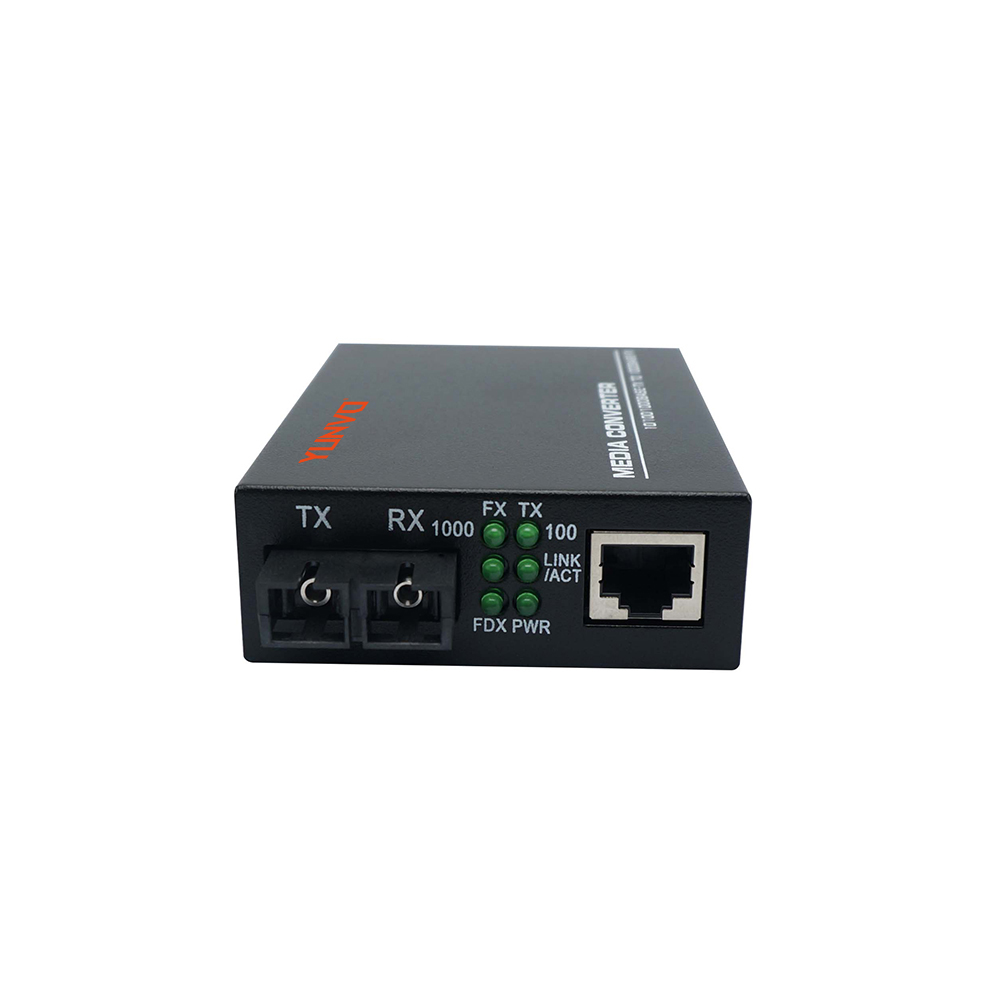

10/100/1000Base-Tx to 1000Base-Fx
The media converter transmits the transmission media of Ethernet signal from CAT Cable to optical fiber. It can extend the transmission distance up to 120km. Using a media converter is an economical solution to achieve long-distance transmission based on current status.
| Part Number | Data Rate | Wavelength | Reach | Connector | Source | Tx Power | Rx Sensitivity |
| YV-MCGE-055 | 10/100/1000Mbps | 850nm | 550m | Dual SC | FP | -9~-3db | ≤-17db |
| YV-MCGE-2 | 10/100/1000Mbps | 1310nm | 2km | Dual SC | FP | -9~-3db | ≤-23db |
| YV-MCGE-20 | 10/100/1000Mbps | 1310nm | 20km | Dual SC | FP | -9~-3db | ≤-23db |
| YV-MCGE-40 | 10/100/1000Mbps | 1310nm | 40km | Dual SC | DFB | -5~0db | ≤-34db |
| YV-MCGE-80 | 10/100/1000Mbps | 1310nm | 80km | Dual SC | DFB | -2~3db | ≤-24db |
| YV-MCGE-100 | 10/100/1000Mbps | 1310nm | 100km | Dual SC | DFB | 2~6db | ≤-30db |
| YV-MCGE-120 | 10/100/1000Mbps | 1310nm | 120km | Dual SC | DFB | 2~6db | ≤-30db |
