Key Features
* Max. 2M buffer memory built in chip.
* Auto negotiation back pressure flow control for full duplex IEEE802.3 X and half duplex.
* Automatic identification of MDI/MDI-X cross line
* High-performance1.4Gbps memory bandwidth.

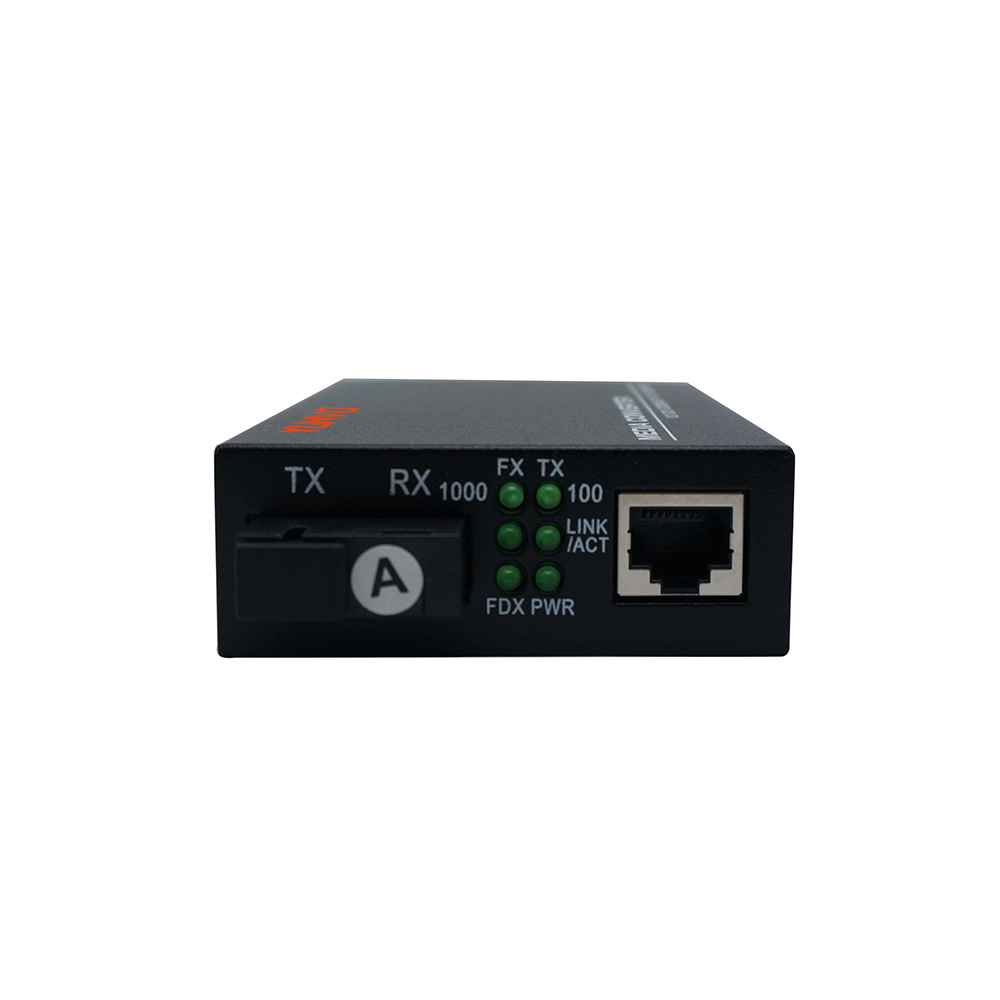

* LED display for PWR,link/activity, full/half duplex,100M,1000M
* Forward 1600 bytes packet for management;
* max. transmission distance can be 120km;
Optional Features:
* Supports link fault pass through function (LFP);
* Supports for end fault function;
* Support EEPROM configuration;
* Pass all packets without address and CRC check;
* Forward fragments.
Read More Less

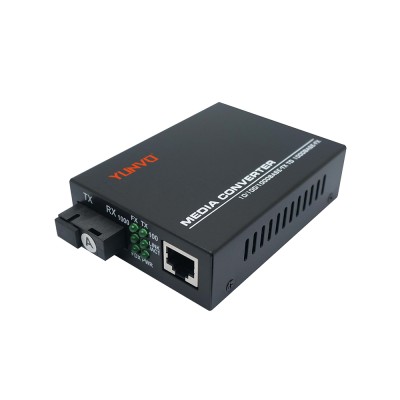

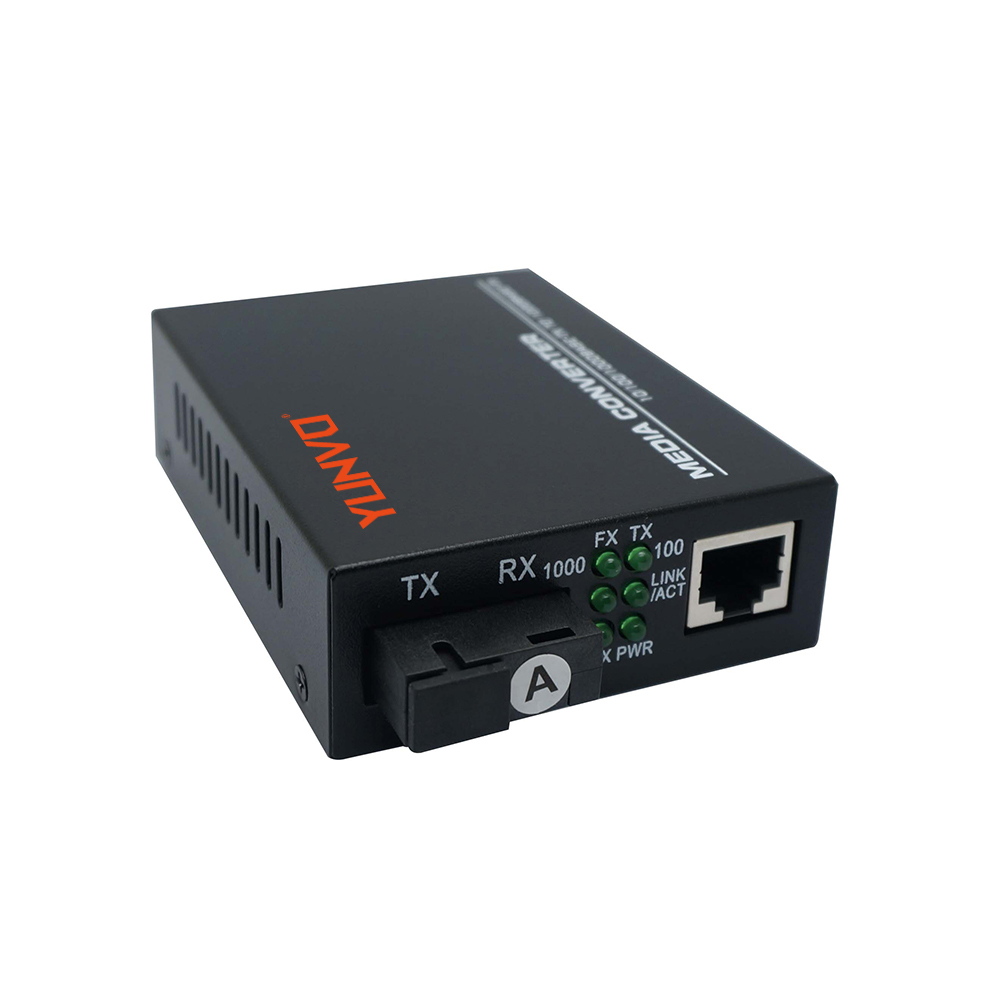

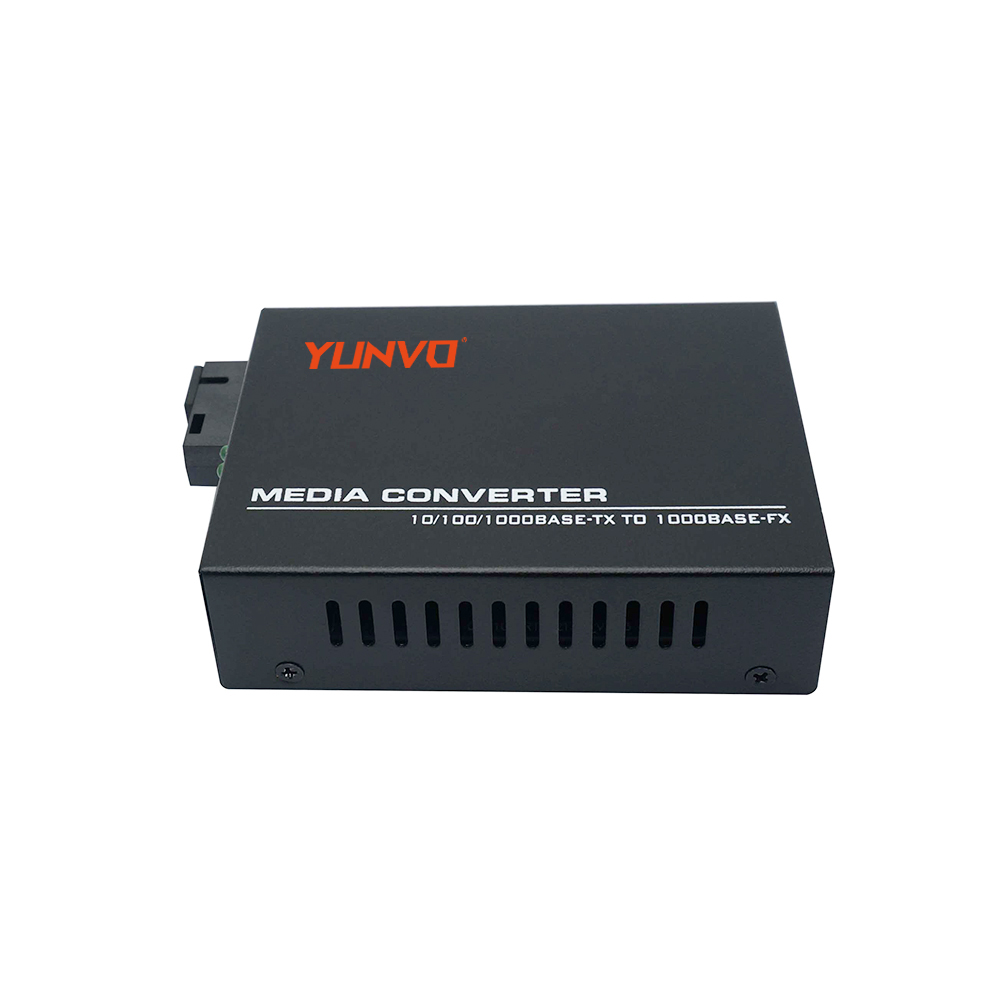

10/100/1000Base-Tx to 1000Base-Fx
The media converter transmits the transmission media of Ethernet signal from CAT Cable to optical fiber. It can extend the transmission distance up to 120km. Using a media converter is an economical solution to achieve long-distance transmission based on current status.
| Part Number | Data Rate | Wavelength | Reach | Connector | Source | Tx Power | Rx Sensitivity |
| YV-MCGE-3TR | 10/100/1000Mbps | 1310/1550nm | 3km | Dual SC | FP | -9~-3db | ≤-17db |
| YV-MCGE-20TR | 10/100/1000Mbps | 1310/1550nm | 20km | Dual SC | FP/DFB | -9~-3db | ≤-23db |
| YV-MCGE-40TR | 10/100/1000Mbps | 1310/1550nm | 40km | Dual SC | DFB | -5~0db | ≤-23db |
| YV-MCGE-80TR | 10/100/1000Mbps | 1490/1550nm | 80km | Dual SC | DFB | -2~3db | ≤-23db |
| YV-MCGE-100TR | 10/100/1000Mbps | 1490/1550nm | 100km | Dual SC | DFB | 2~6db | ≤-30db |
| YV-MCGE-120TR | 10/100/1000Mbps | 1490/1550nm | 120km | Dual SC | DFB | 2~6db | ≤-30db |
