Key Features
* QSFP+ conforms to the Small Form Factor SFF-8436
* 4-Channel Full-Duplex Passive Copper Cable Transceiver
* Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)
* Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
* Copper link length up to 5m (passive limiting)
* High-Density QSFP 38-PIN Connector
* Power Supply :+3.3V
* Low power consumption: 0.02 W (typ.)
* I2C based two-wire serial interface for EEPROM signature which can be customized
* Temperature Range: 0~ 70 °C
Read More Less

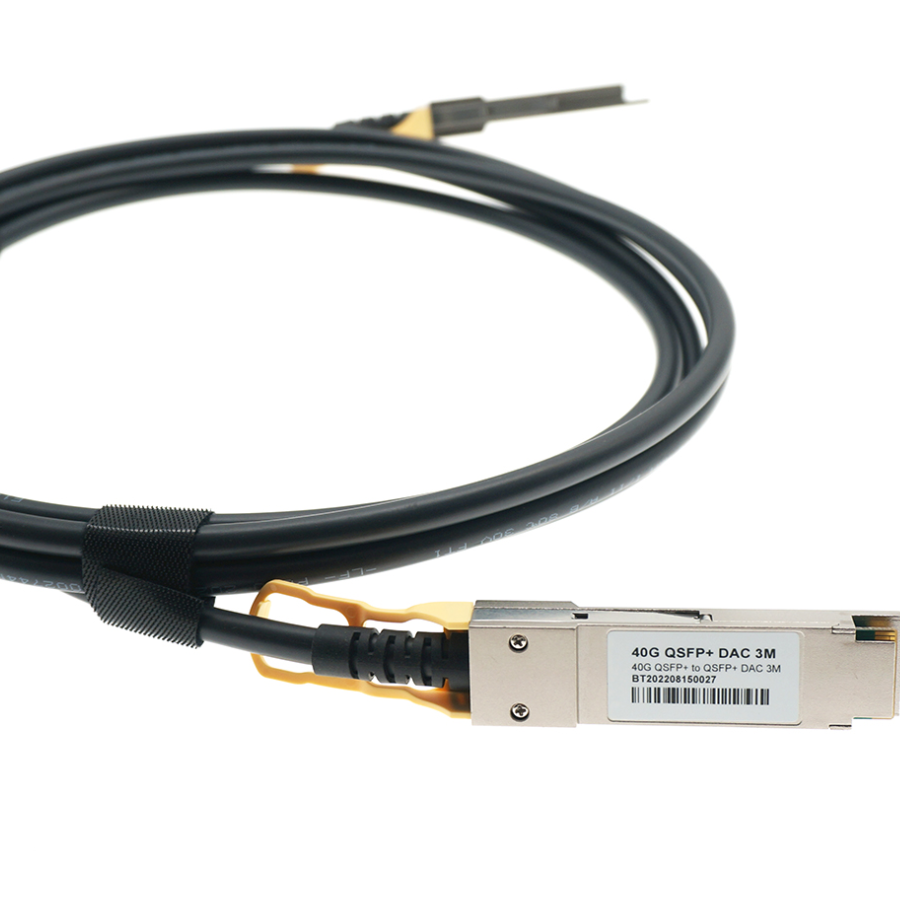

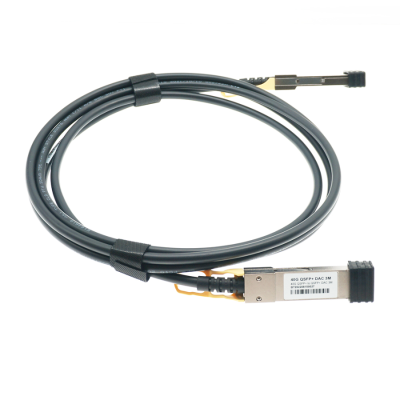

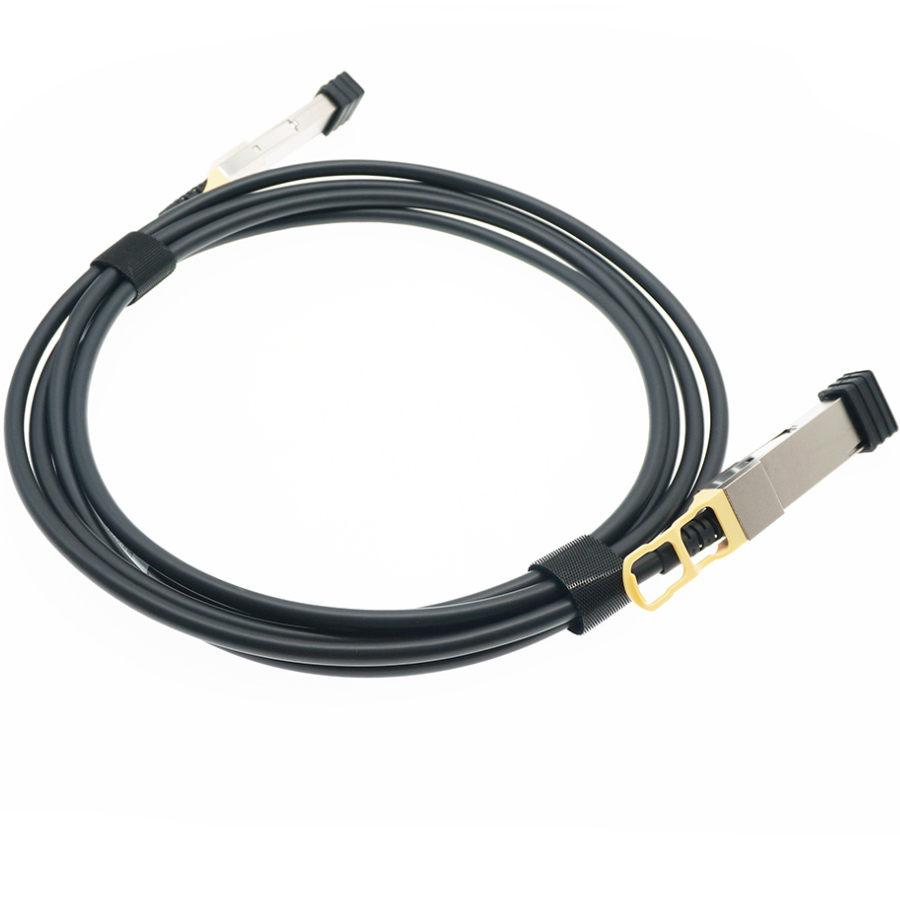

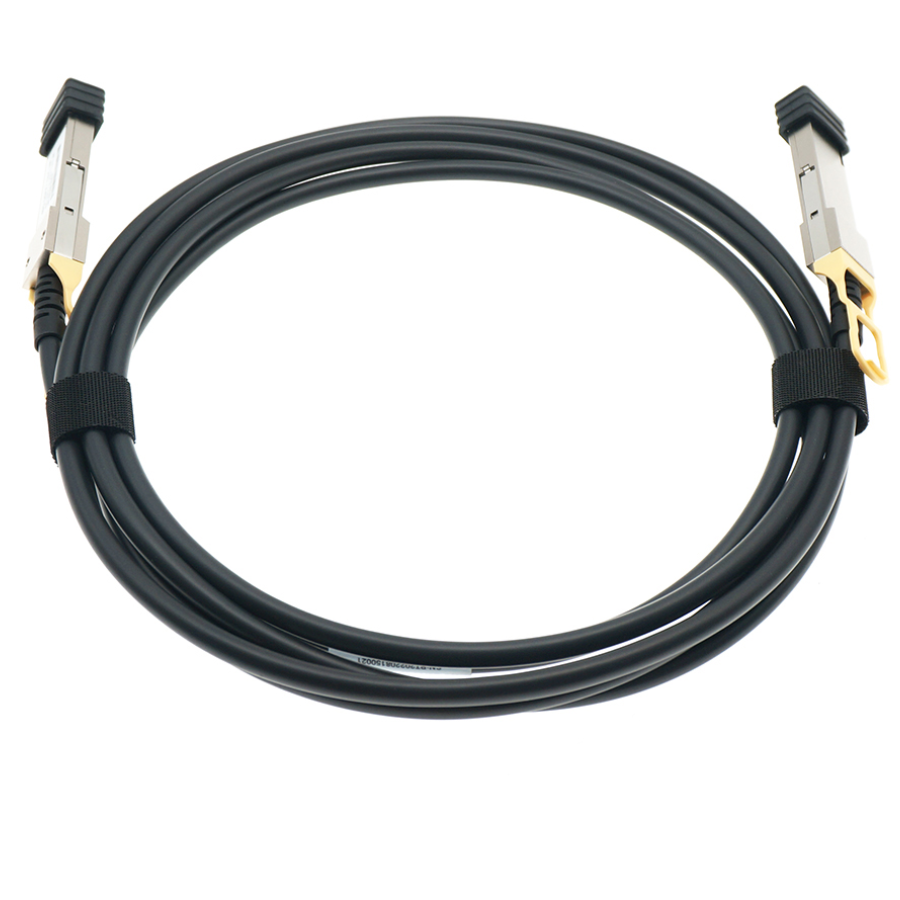

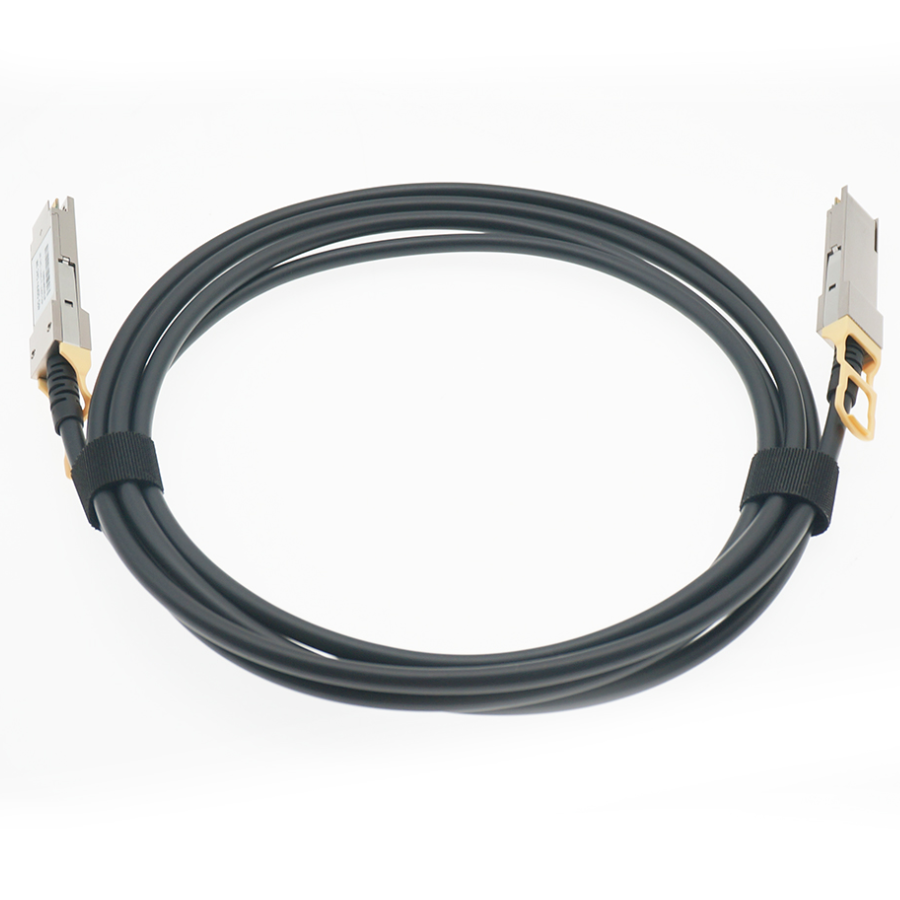

The 40G QSFP+ Passive Copper Cables are high-performance， cost-effective I/O solutions for 40G LAN, HPC, and SAN applications. The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA, and IEEE P802.3ba 40GBASE-CR4. Passive Direct Attach Copper Twinax Cable.
|
Part Number |
Description |
|
YV-QSFP+-D1M |
40G QSFP+ to 40G QSFP+ DAC 1meter |
|
YV-QSFP+-D3M |
40G QSFP+ to 40G QSFP+ DAC 3meter |
|
YV-QSFP+-D5M |
40G QSFP+ to 40G QSFP+ DAC 5meter |
|
YV-QSFP+-D7M |
40G QSFP+ to 40G QSFP+ DAC 7meter |
