Key Features
* 4 Independent full-duplex channels
* Up to 11.2Gbps per channel bandwidth
* Aggregate bandwidth of > 40Gbps
* QSFP MSA compliant
* Duplex LC Connector
* Up to 10 km transmission
* CML-compatible electrical I/O
* Single +3.3V power supply operating
* IEEE 802.3ba Electrical Interface
* Built-in digital diagnostic functions
* Temperature range 0°C to 70°C
* RoHS Compliant Part
Read More Less

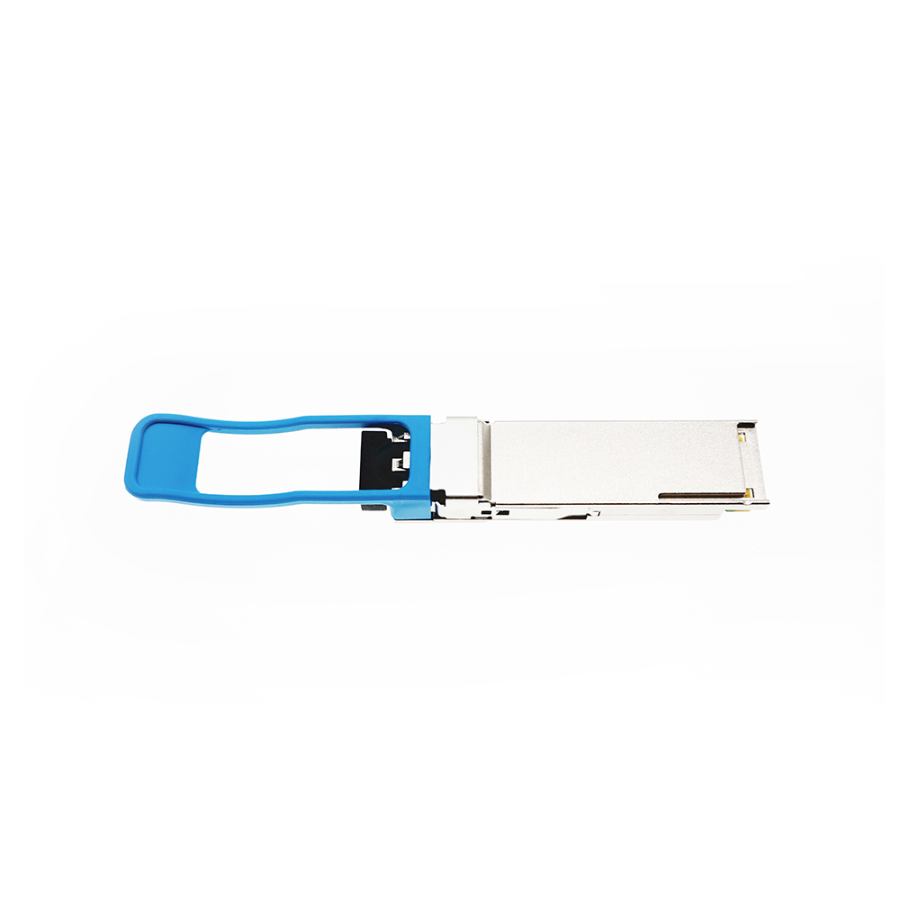

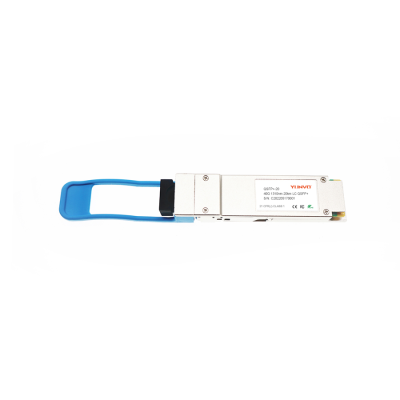

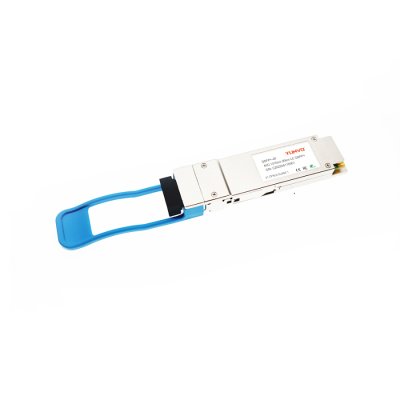

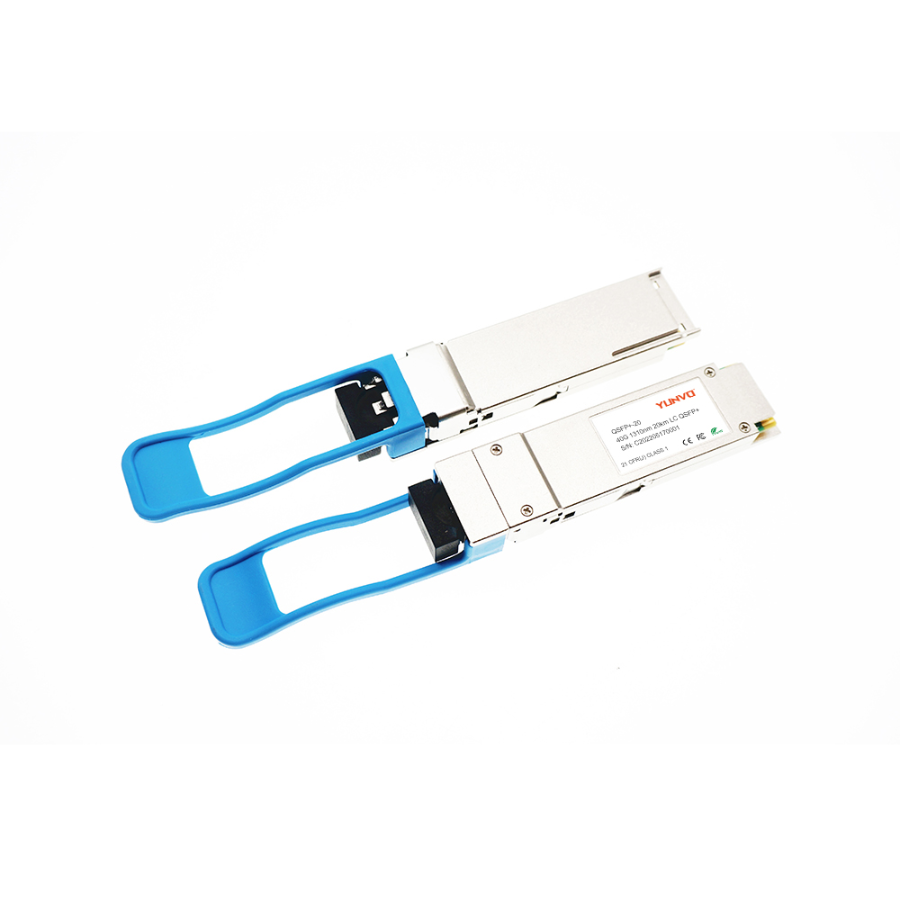

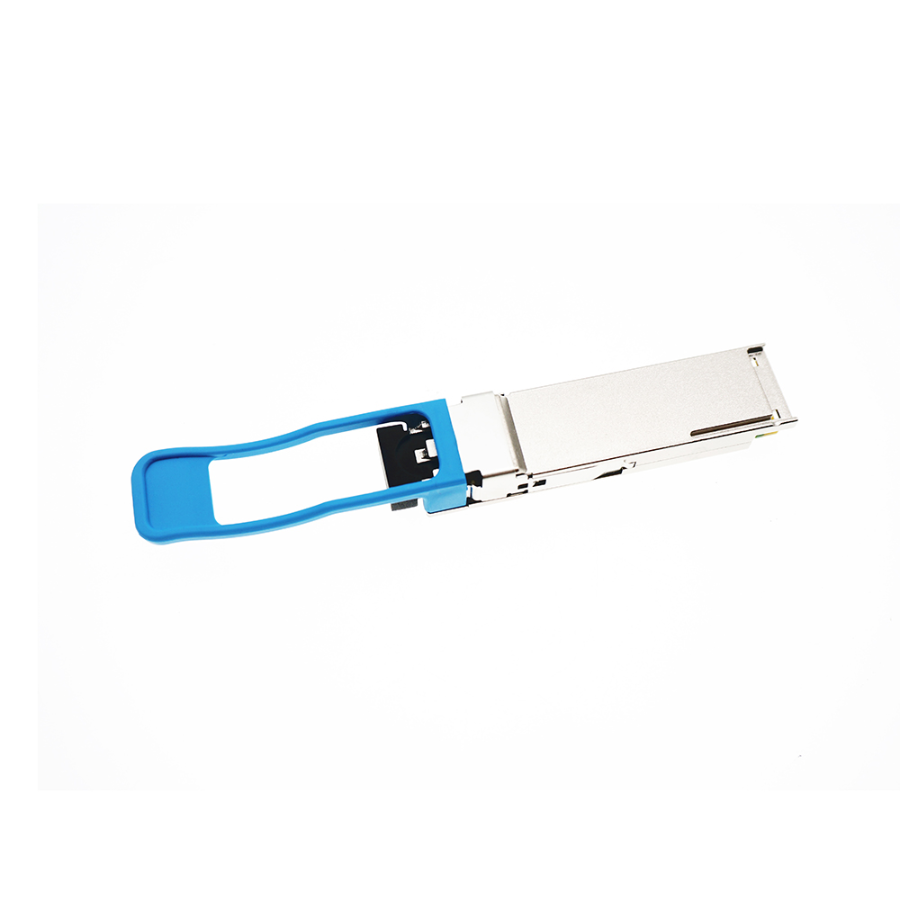

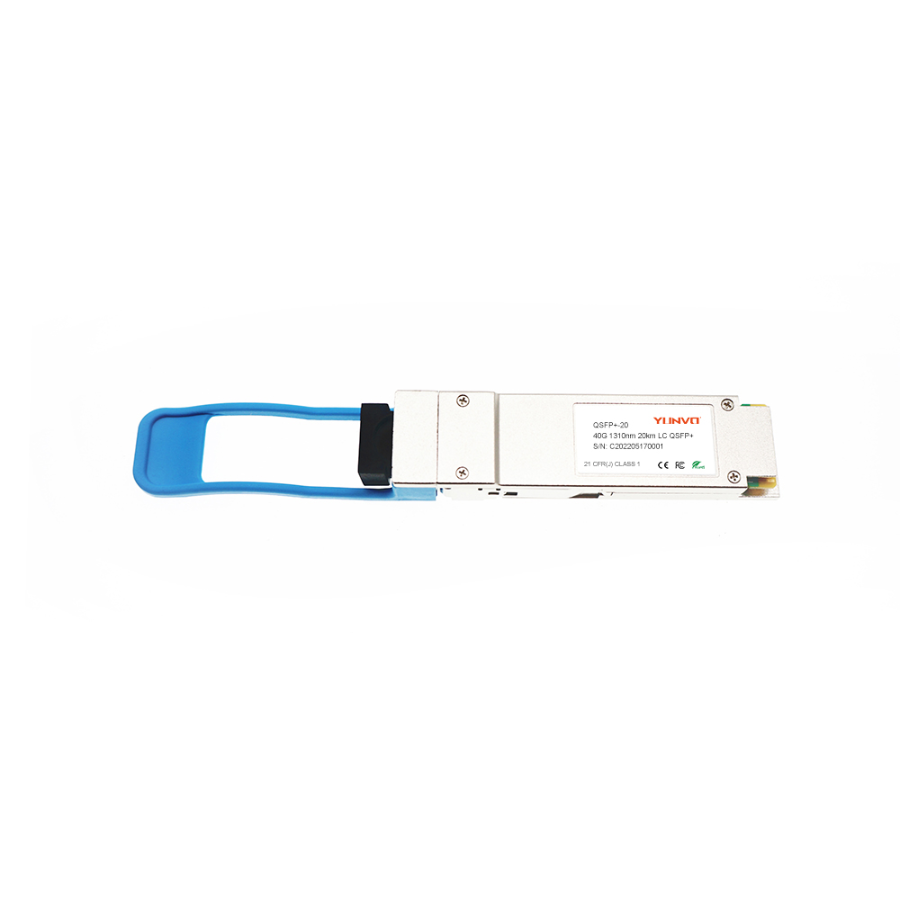

QSFP+ 20km Transceiver is designed to operate over a single-mode fiber system using a 4X10 CWDM channel in a 1310nm band and links up to 20km. The module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals and converts them to 4-channel output electrical data.
