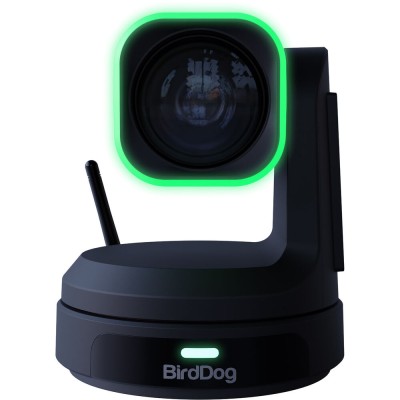

BirdDog X1 Ultra PTZ Camera with 12x Zoom (Black/White)

SKU: X1 Ultra

( 0 ) Reviews


In Stock NRs.195999 Save Nrs. 4000 NRs.199999

195999

Vat Included

Only 3 Left in stock

Minimum Order Quantity: 1 Piece


Key Features

Key Features

  • 12x Zoom & UHD 4K30 Resolution
  • AI Auto Framing

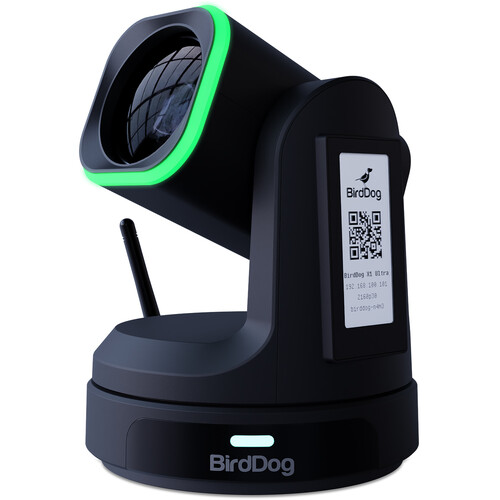

  • Integrated 2.93" E-Ink Display
  • Wi-Fi 5 & NDI|HX3 Support
  • HDMI & USB/UVC Outputs
  • Built-In Halo Tally
  • Color Matrix, API & Kelvin Control
  • PoE Support
  • Exceptional Low-Light Performance

Read More Less

Capture UHD 4K30 resolution video and keep your subjects in frame with AI auto framing using this white X1 Ultra PTZ Camera with 12x Zoom from BirdDog. Boasting a powerful 12x zoom as well as color matrix, API, and Kelvin control, the versatile X1 Ultra offers exceptional low-light performance and support for Wi-Fi 5 and NDI|HX3.

Physical connectivity options include an HDMI output and a USB/UVC output with independent resolution for direct connection to Microsoft Teams, Zoom, and more. A built-in halo tally and a 2.93" E-Ink display augment the camera's broad functionality features, and PoE (Power over Ethernet) support allows you to power the camera using a single Ethernet cable and facilitating quick and easy setup with limited cable clutter.

Integrated NDI Decoder

The camera features an NDI|HX decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. All the connectivity is contained into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle.

AI Tracking

Keep your subject in focus with AI tracking technology, intelligently following your subject's movements in real-time. Whether you're orchestrating a live event, capturing spontaneous moments in a hybrid environment, or hunting down sports action, AI tracking helps you get well framed.

Wi-Fi Connectivity

No need to use cables to capture every shot. On top of regular Ethernet with PoE, the camera boasts built-in Wi-Fi functionality. Easily capture shots from spots where it's hard to run a cable, seamlessly integrating into any environment.

NDI|HX2 & NDI|HX3 Integration

Achieve superior network performance via NDI|HX2 and NDI|HX3 integration. You get significantly reduced network impact and excellent image quality for a more user-friendly experience in more network environments.

Built-In Halo Tally Light

A visible and effective halo tally system is prominent with a large, daylight visible border, and an interchangeable, illuminated numbering system. Your cast and crew will always know where to look to keep you audience engaged and your look polished.

In the Box

  • BirdDog X1 Ultra PTZ Camera with 12x Zoom (White)
  • Limited 5-Year Manufacturer Warranty

Additional Resources

BirdDog X1 Ultra Specs

Key Specs

Image Sensor

1/2.8"-Type CMOS

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

Optical Zoom Ratio

12x

External Recording Modes

HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps
HD (1920 x 1080p) at 25/29.97/30.00 fps
HD (1280 x 720) at 25/29.97/30.00 fps

Show More
Broadcast Output

NTSC/PAL

IP Streaming

NDI|HX2, NDI|HX3, RTMP, RTSP
3840 x 2160 at 30p

Supported Control Protocols

ONVIF Profile S
RS-232
RS-485

PoE Support

PoE 802.3af

Imaging

Image Sensor

1/2.8"-Type CMOS

Horizontal Resolution (TV Lines)

2160 TV Lines

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

IR Cut Filter

No

Focus Control

Autofocus
Manual Focus

Exposure Control

Signal-to-Noise Ratio

50 dB

White Balance

Range: 2500 to 9000K
Presets: Manual, VAR

Lens

Focal Length

4.1 to 49.2mm

Optical Zoom Ratio

12x

Field of View

Horizontal: 70.28 to 6.57°
Vertical: 42.06 to 3.76°
Diagonal: 78.36 to 7.5°

Maximum Aperture

f/1.8 to 2.68

Video Capture

External Recording Modes

HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps
HD (1920 x 1080p) at 25/29.97/30.00 fps
HD (1280 x 720) at 25/29.97/30.00 fps

Embedded Audio

HDMI/LAN (RJ45)/SDI

Broadcast Output

NTSC/PAL

IP Streaming

NDI|HX2, NDI|HX3, RTMP, RTSP
3840 x 2160 at 30p

Control

Presets

255

Pan/Tilt

Pan: 350° (-175 to 175°) at 0.1 to 80°/s
Tilt: 180° (-90 to 90°) at 0.1 to 60°/s

Tally Light

Yes

Supported Control Protocols

ONVIF Profile S
RS-232
RS-485

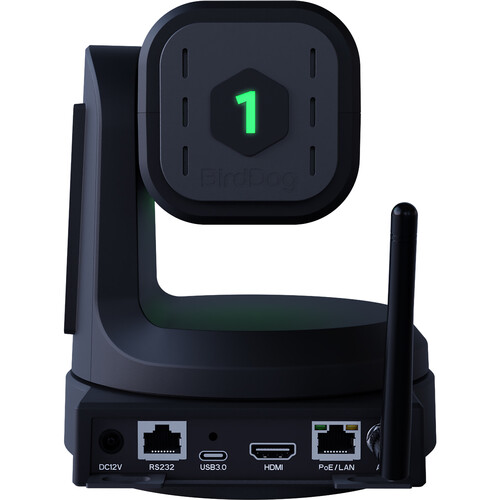

Interface

Video I/O

1x HDMI (Unspecified Signal) Output

Other I/O

1x USB-C
1x RJ45 (NDI)

Built-In Speaker

No

Power

PoE Support

PoE 802.3af

Power I/O

1x RJ45 (12VDC at 2 A) Input

Power Consumption

13 W

Environmental

Operating Conditions

14 to 104°F / -10 to 40°C at 20 to 80% Humidity

General

Dimensions (W x H x D)

10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm

Weight

3.15 lb / 1.43 kg (Body Only)

Packaging Info

Package Weight

5.86 lb

Box Dimensions (LxWxH)

11.8 x 9.5 x 7.8"

BirdDog X1 Ultra Specs

Key Specs

Image Sensor

1/2.8"-Type CMOS

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

Optical Zoom Ratio

12x

External Recording Modes

HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps
HD (1920 x 1080p) at 25/29.97/30.00 fps
HD (1280 x 720) at 25/29.97/30.00 fps

Show More
Broadcast Output

NTSC/PAL

IP Streaming

NDI|HX2, NDI|HX3, RTMP, RTSP
3840 x 2160 at 30p

Supported Control Protocols

ONVIF Profile S
RS-232
RS-485

PoE Support

PoE 802.3af

Imaging

Image Sensor

1/2.8"-Type CMOS

Horizontal Resolution (TV Lines)

2160 TV Lines

Sensor Resolution

Effective: 8.29 Megapixel (3840 x 2160)

IR Cut Filter

No

Focus Control

Autofocus
Manual Focus

Exposure Control

Signal-to-Noise Ratio

50 dB

White Balance

Range: 2500 to 9000K
Presets: Manual, VAR

Lens

Focal Length

4.1 to 49.2mm

Optical Zoom Ratio

12x

Field of View

Horizontal: 70.28 to 6.57°
Vertical: 42.06 to 3.76°
Diagonal: 78.36 to 7.5°

Maximum Aperture

f/1.8 to 2.68

Video Capture

External Recording Modes

HDMI / RJ45 / USB
UHD 4K (3840 x 2160) at 25/29.97/30.00 fps
HD (1920 x 1080p) at 25/29.97/30.00 fps
HD (1280 x 720) at 25/29.97/30.00 fps

Embedded Audio

HDMI/LAN (RJ45)/SDI

Broadcast Output

NTSC/PAL

IP Streaming

NDI|HX2, NDI|HX3, RTMP, RTSP
3840 x 2160 at 30p

Control

Presets

255

Pan/Tilt

Pan: 350° (-175 to 175°) at 0.1 to 80°/s
Tilt: 180° (-90 to 90°) at 0.1 to 60°/s

Tally Light

Yes

Supported Control Protocols

ONVIF Profile S
RS-232
RS-485

Interface

Video I/O

1x HDMI (Unspecified Signal) Output

Other I/O

1x USB-C
1x RJ45 (NDI)

Built-In Speaker

No

Power

PoE Support

PoE 802.3af

Power I/O

1x RJ45 (12VDC at 2 A) Input

Power Consumption

13 W

Environmental

Operating Conditions

14 to 104°F / -10 to 40°C at 20 to 80% Humidity

General

Dimensions (W x H x D)

10.2 x 8.5 x 7.8" / 260 x 217 x 197 mm

Weight

3.15 lb / 1.43 kg (Body Only)

Packaging Info

Package Weight

5.86 lb

Box Dimensions (LxWxH)

11.8 x 9.5 x 7.8"
