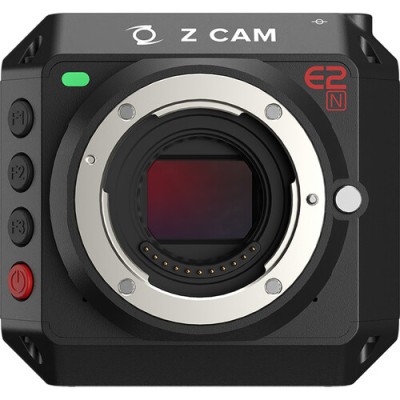

Add the E2N 4K NDI Camera from Z CAM to your NDI ecosystem and enjoy NDI and SSP support on a compact box camera that features an MFT lens mount and a 4/3" dual native ISO CMOS sensor with the capability of capturing resolutions up to 4K60. The E2N can handle H.265 and H.264 via NDI|HX3 and NDI|HX formats, as well as via SSP.
Add the E2N 4K NDI Camera from Z CAM to your NDI ecosystem and enjoy NDI and SSP support on a compact box camera that features an MFT lens mount and a 4/3" dual native ISO CMOS sensor with the capability of capturing resolutions up to 4K60. The E2N can handle H.265 and H.264 via NDI|HX3 and NDI|HX formats, as well as via SSP. The camera offers tally control via NDI and PoE+ (Power over Ethernet). An SD card slot provides internal recording options, but you can also record to an external recording system using the HDMI output. A web-based user interface and a full set of open API can be employed for control and monitoring.
Key Specs
| Lens Mount |
Micro Four Thirds |
| Sensor Resolution |
(3840 x 2160)Effective: 10.71 Megapixel |
| Image Sensor |
4/3"-Type CMOS |
| Image Stabilization |
No |
| Internal Recording Modes |
H.264/H.265/MOV/MP4 8-Bit |
| External Recording Modes |
No |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Video I/O |
1x HDMI 2.0 Output |
| Mobile App Compatible |
No |
Imaging
| Lens Mount |
Micro Four Thirds |
| Sensor Resolution |
(3840 x 2160)Effective: 10.71 Megapixel |
| Image Sensor |
4/3"-Type CMOS |
| Image Stabilization |
No |
| Built-In ND Filter |
No |
| Capture Type |
Video Only |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Speed |
1/8000 to 1 Seconds |
| ISO Sensitivity Range |
500 to 102,400 |
| Shutter Angle |
1 to 360° |
Video Capture
| Internal Recording Modes |
H.264/H.265/MOV/MP4 8-Bit |
| External Recording Modes |
No |
| Fast-/Slow-Motion Support |
No |
| Audio Recording |
16-Bit 48 kHz AAC Audio |
| IP Streaming |
Yes |
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Video I/O |
1x HDMI 2.0 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O |
1x USB-C |
| Wireless |
5 GHz Wi-Fi 5 (802.11ac) |
| Mobile App Compatible |
No |
| Global Positioning (GPS, GLONASS, etc.) |
No |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| PoE Support |
PoE+ 802.3at |
| Shoe Mount |
No |
| Accessory Mounting Thread |
No |
| Dimensions (W x H x D) |
3.6 x 3.4 x 3.4" / 91 x 85.3 x 86 mm (Without Included Lens Mount) |
| Weight |
1.5 lb / 660 g (Body Only) |
Packaging Info
| Package Weight |
2.06 lb |
| Box Dimensions (LxWxH) |
7.2 x 7.1 x 6.3" |
Key Specs
| Lens Mount |
Micro Four Thirds |
| Sensor Resolution |
(3840 x 2160)Effective: 10.71 Megapixel |
| Image Sensor |
4/3"-Type CMOS |
| Image Stabilization |
No |
| Internal Recording Modes |
H.264/H.265/MOV/MP4 8-Bit |
| External Recording Modes |
No |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Video I/O |
1x HDMI 2.0 Output |
| Mobile App Compatible |
No |
Imaging
| Lens Mount |
Micro Four Thirds |
| Sensor Resolution |
(3840 x 2160)Effective: 10.71 Megapixel |
| Image Sensor |
4/3"-Type CMOS |
| Image Stabilization |
No |
| Built-In ND Filter |
No |
| Capture Type |
Video Only |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Speed |
1/8000 to 1 Seconds |
| ISO Sensitivity Range |
500 to 102,400 |
| Shutter Angle |
1 to 360° |
Video Capture
| Internal Recording Modes |
H.264/H.265/MOV/MP4 8-Bit |
| External Recording Modes |
No |
| Fast-/Slow-Motion Support |
No |
| Audio Recording |
16-Bit 48 kHz AAC Audio |
| IP Streaming |
Yes |
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 or Faster Recommended] |
| Video I/O |
1x HDMI 2.0 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O |
1x USB-C |
| Wireless |
5 GHz Wi-Fi 5 (802.11ac) |
| Mobile App Compatible |
No |
| Global Positioning (GPS, GLONASS, etc.) |
No |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
| PoE Support |
PoE+ 802.3at |
| Shoe Mount |
No |
| Accessory Mounting Thread |
No |
| Dimensions (W x H x D) |
3.6 x 3.4 x 3.4" / 91 x 85.3 x 86 mm (Without Included Lens Mount) |
| Weight |
1.5 lb / 660 g (Body Only) |
Packaging Info
| Package Weight |
2.06 lb |
| Box Dimensions (LxWxH) |
7.2 x 7.1 x 6.3" |
