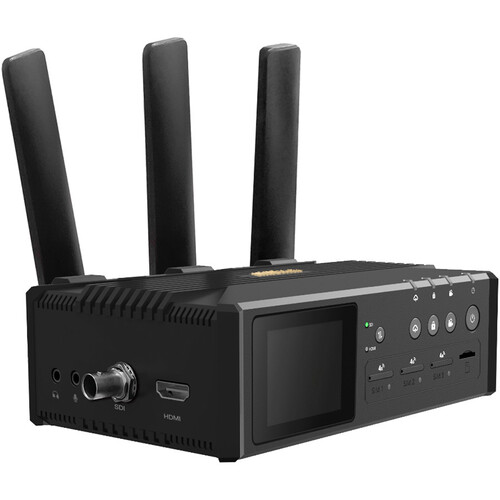

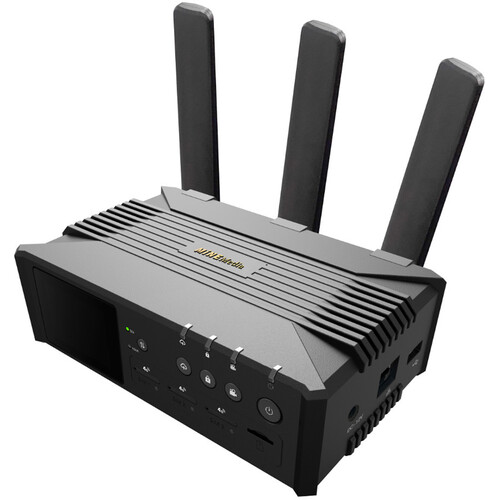

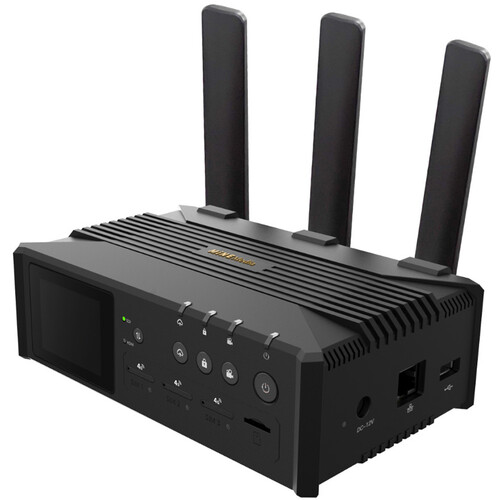

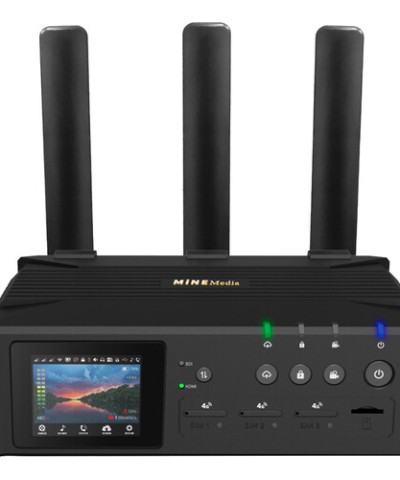

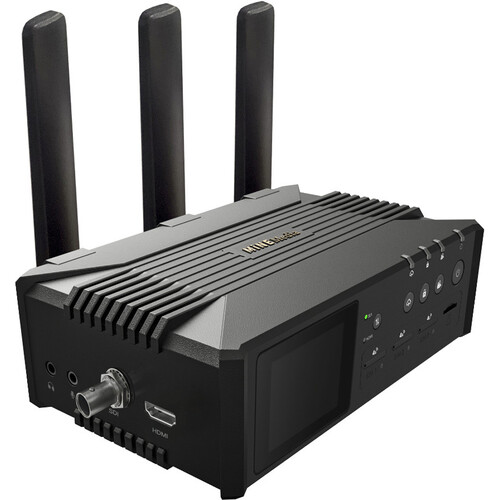

Mine-Q8 4G/5G Live Bonding Encoder

SKU: MM-Q8

( 0 ) Reviews


Please make a enquiry or Get Quote
0

Key Features

  • Dual HDMI/SDI

  • 3 SIM/WiFi/Ethernet/USB Dongle

  • M Live App Control/Web Control/Touch-screen Control

  • Portable to carry

  • Support RTMP Pull to Vmix and no need for public IP

  • Multi-platform streaming available

  • Portable Wireless 4G/5G Streaming Encoder, HD live video streaming through SRT/RTMP/RTMPS/RTSP directly to Facebook, YouTube, Twitter, etc.

  • H.264 (RTMP/RTMPS), H.265 (RTSP), support 1080p60/50/30/25; 1080i60/50; 720p60/50/30/25

  • Simultaneously bond up to 6 network links including support for 3* 4G LTE cellular or 1* USB Dongle, Wifi and Ethernet.

  • Internal rechargeable battery provides up to 4-6 hours of continuous streaming.

Read More Less

Set up your remote video stream for redundancy with the compact Q8 4G Live Streaming Bonding Video Encoder from MiNE Media. The encoder features HDMI and 3G-SDI inputs that support up to 1080p60 resolutions, and source switching between them is seamless using the remote M Live app or a local source button. It can bond up to 6 network outputs using its numerous output methods, including Wi-Fi, Ethernet, a USB wireless dongle, and three SIM slots for 4G LTE cellular destinations.

The portable unit features an internal 7200mAh battery that can operate for up to 6 hours. It supports H.264/H.265 and SRT streaming to servers and social media sites such as Facebook, YouTube, or Twitter using RTMP/RTMPS/RTSP and SRT protocols. You can view a preview image of your stream on the front display, and it also features audio data with support for up to 192 kHz / 24-bit audio, and it also features AGC (automatic gain control).


Specification Model Mine Q8
Name 5G/4G Bonding Encoder
Video Input HDMI + 3G-SDI
Video Parameters Video Compression Format H.264/H265
Encoding Mode H.265 Main profile/H.264 High Profile/ Main profile/Base line
Video Input Format 1080p:1920×1080@25p/30p/50p/60p 1080i:1920×1080@50i/60i 720p:1280×720@25p/30p/50p/60p/120p
Live Streaming Resolution 1920×1080、1280×720、 960×540、848×480、 640×360、480×270 (Frame rate adjustable)
Recording resolution Maximum support 1080p60 (Frame rate adjustable)
Audio Parameters Audio Compression Standard AAC
Audio Sample Rate 44.1K/48K
Audio Input 3.5mm dual-channel external audio input
Audio Format MP3
Audio Output 3.5mm dual-channel audio monitoring
Screen Parameters LCD Size 2-inch HD display
Screen Characteristics Touch Screen
Network Interface 5G Built-in 5G module * 1 (Optional)
4G Built-in 4G module 2 Or 3
WIFI Support 2.4G/5.8G dual-band WIFI access.
Ethernet Gigabit network port
USB External 4G dongle, USB network card can be used.
Transmission Stream Protocol Support RTMP(s)、SRT、RTSP
Storage Storage Function Support TF card (maximum 256G)
Video Format MP4(H.265/H.264+AAC)
File System FAT32;exFAT
System Device System Linux
M Live APP Above Android 5 & ios 9
Power Supply Power DC12V=3A
Max Power Consumption 18W
Battery Capacity 7.4V/7200mAh
Structure Dimension(mm) 162mm*102mm*53.4mm
Weight 735g
Working Environment Work Tempreture 0℃~40℃
Working Humidity Humidity is less than 95% (no condensation)
Storage Temperature 5℃~40℃


WHAT’S IN THE BOX

Package includes:
  • Q8 4G Live Bonding Encoder (Dual HDMI/SDI)*1

  • Protective suite case*1

  • Back-bag (Optional)*1

  • HDMI cable*1

  • SDI cable*1

  • Antenna*3

  • Power adapter*1

  • Shoe mount*1

  • Pin*1

  • Manual*1

Imaging

Mine-Q8 4G/5G Live Bonding Encoder Multi-platform streaming available
