Only 4 Left in stock
Minimum Order Quantity: 1 Piece
Key Features
Read More Less

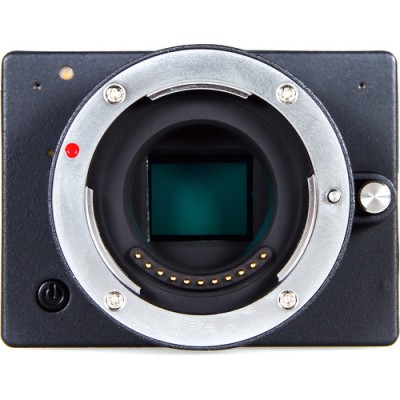

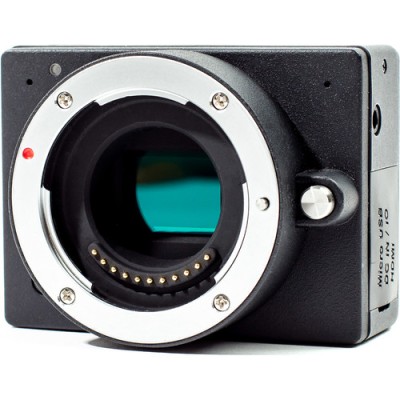

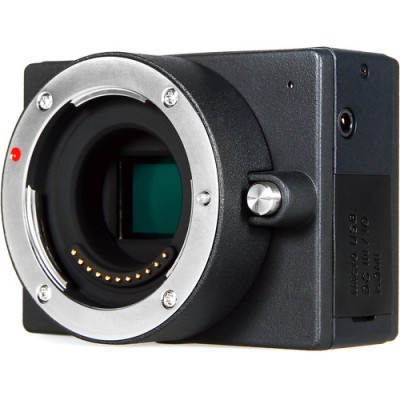

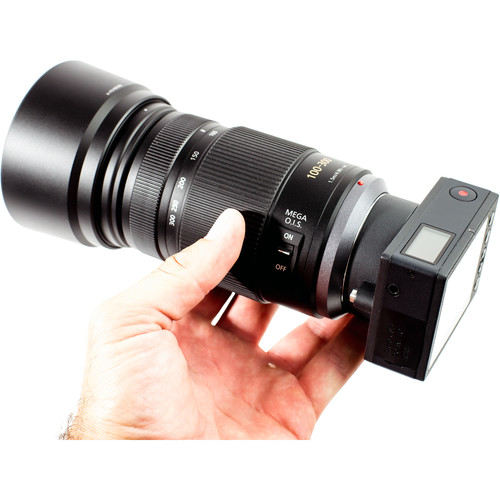

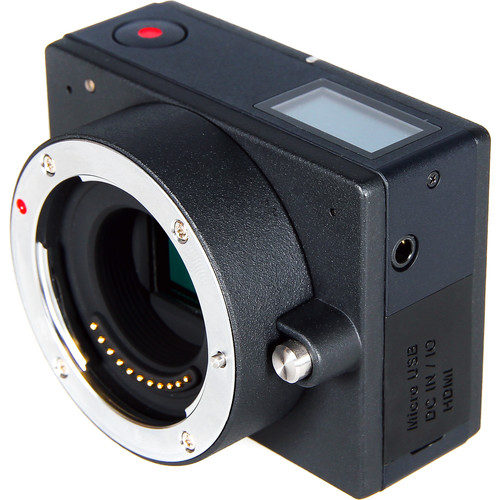

Z CAM E1: A miniature yet powerful interchangeable camera system with 4K video capabilities, remote control functionality, and a compact form factor. The camera features a 16MP CMOS sensor, supports various video resolutions, offers continuous autofocus, and can be controlled via Wi-Fi or Bluetooth using a mobile device. With its small size and lightweight design, the E1 is perfect for capturing action-packed footage and mounting on UAVs for aerial photography.
Imaging
Lens Mount | Micro Four Thirds (active) |
Camera Format | Micro Four Thirds (2x 35mm crop factor) |
Sensor | Panasonic MN34230 |
Processor | Ambarella A9A75 chipset |
ISO Sensitivity | Max. 25,600 (auto) |
Video
Resolutions & Frame Rates | 4096 x 2160 / 24 fps 3840 x 2160 / 24, 25, 30 fps 2880 x 2160 / 24, 25, 30 fps 1920 x 1920 / 24, 25, 30 fps 1920 x 1440 / 24, 25, 30 fps 1920 x 1080 / 24, 25, 30, 50, 60 fps 1280 x 720 / 50, 60, 240 fps 840 x 480 / 25, 30 fps |
Video Encoder | H.264 high profile |
File Format | .MOV |
Bitrate | 60 Mb/s (4K / UHD) |
Audio Encoder | AAC |
Resolution | 16 MP (4640 x 3480) 12 MP (4000 x 3000) 8 MP (3260 x 2448) 5 MP (2592 x 1944) |
File Formats | JPEG (DCF, EXIF) RAW (Uncompressed DNG) |
JPEG Compression Quality Settings | Super Fine, Fine, Basic |
Burst Rate | 15 fps at 16 MP |
Shutter Speed | 1/8000 sec (maximum) |
Focus Control
Autofocus | Single Continuous Center Flexible Zone |
Display
Type | LCD |
Resolution | 320 x 240 |
Connectivity
USB | Micro-USB 2.0 |
HDMI | Mini-HDMI 1.4a (clean video output up to 1080p60) |
Microphone Input | 3.5 mm |
Wi-Fi | 802.11n 200 ms latency |
Bluetooth | Bluetooth Low Energy (4.0) |
DC Power Input | 5 V, 2 A |
General
Media Storage | microSD/SDHC/SDXC |
Tripod Mounting Thread | 1/4"-20 |
Battery | 2000 mAh lithium-ion |
Body Material | Magnesium alloy |
Dimensions | 3 x 2.2 x 2" (7.52 x 5.61 x 5.025 cm) |
Weight | Body Only: 7.4 oz (210 g) Battery: 1.5 oz (42 g) |
Packaging Info
Package Weight | 1.25 lb |
Box Dimensions (LxWxH) | 7.6 x 6.5 x 2.4" |
Imaging
Z CAM E1 Mini 4K Interchangeable Lens Camera | The Z CAM E1 offers three selectable video noise reduction levels, ensuring cleaner and smoother video footage. With a low 200 millisecond latency when using the app, you can have real-time control and monitoring of your recordings. The camera provides autofocus flexibility with Single, Continuous Center, and Flexible Zone autofocus modes, allowing you to choose the best focusing option for your specific needs. It supports microSD/SDHC/SDXC cards for convenient storage. Additionally, two 2000mAh rechargeable battery packs are included for extended shooting sessions. The camera features a Mini-HDMI 1.4a port for clean 1080p output, a Micro-USB 2.0 port for data transfer, a 3.5mm mic input for external audio recording, and an expansion port for connecting additional accessories. It also offers a DC power input for use with an external power source (5V, 2A). |
