Add both versatile lens compatibility and a detachable onboard monitor to your cine-style capture with the Z CAM E2-F6 Pro Full-Frame Cinema Camera. This compact camera comes with a Canon EF lens mount and can be used with separately available ARRI PL and Leica M mounts. The E2-F6 Pro captures up to 10-bit 6K60 full-frame video and offers both pro-12G-SDI and HDMI video outputs. The included 5" touchscreen monitor is detachable and can be tilted for optimal viewing. It captures a nominal 15 stops of dynamic range, supports timecode and genlock, and incorporates four user-assignable buttons along the side of the camera.

Full Frame Capture

The E2-F6 Pro uses a CMOS sensor to capture immersive, full-frame footage.

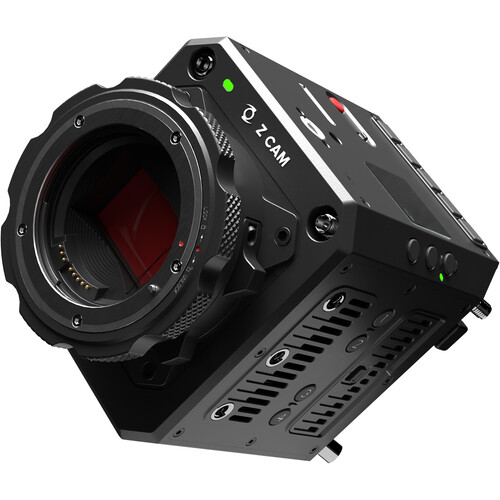

Interchangeable Lens Mount

Packaged with an interchangeable Canon EF lens mount, the Z CAM E2-F6 Pro can also be used with separately available Leica M and ARRI PL mounts, expanding your options to include a wide array of both still and cine-style lenses.

6K Capture and Recording

• Record up to 10-bit 6K60 and DCI 4K120 video internally and via 12G-SDI output.
• Z-Log2, 10-bit color, ProRes 422, 422 LT, 422 Proxy, and ProRes 422 HQ options.

Note:

Raw over HDMI external recording is not yet supported.

CFast 2.0 and ZBlade Media

• Capture your video using CFast 2.0 cards or custom ZBlade 1, 2, or 4TB cards.
• ZBlade cards capture ProRes 422 HQ at rates up to 6K60 and 4K120.
• Exascend offers data recovery services for ZBlade cards.

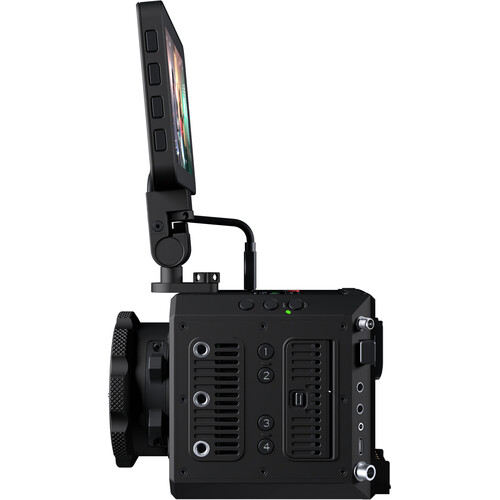

Touchscreen Control Monitor

• The included 5" touchscreen monitor is detachable, enabling you to streamline your camera rig when suitable.
• This touchscreen monitor provides complete camera control.

15 Stops of Dynamic Range

Capture nuanced imagery with up to 15 stops of dynamic range.

Multicamera and Workflow Functions

• Genlock and timecode enable you to align multiple cameras for simultaneous recording.
• USB-C connector for camera control and data transfer.
• Built-in 5G Wi-Fi.

Ethernet Streaming

Use the Gigabit Ethernet RJ45 port for control, settings, and live streaming.

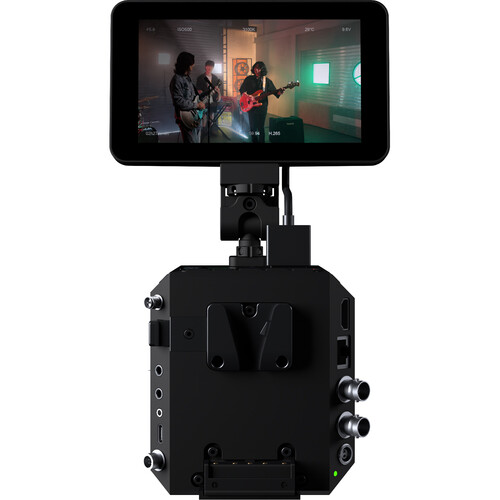

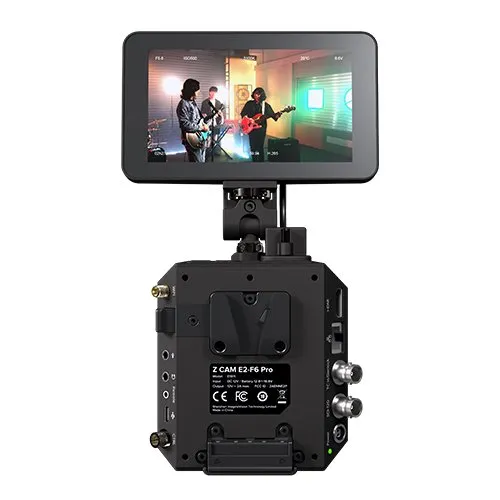

V-Mount and LEMO Power

The E2-F6 Pro can be powered by a separately available battery using the built-in V-mount plate or via a separately available power adapter and the 2-pin LEMO port.

In the Box

• Z CAM E2-F6 Pro Full-Frame Cinema Camera with 5" Touchscreen Monitor (Canon EF)
• 5" Touchscreen Monitor
• D-Tap Power Cable
• Limited 1-Year Manufacturer Warranty

Not in the Box

• Essential Recording Media (Not Included)
• Essential Cine Lenses (Not Included)

Technical Specifications

Disclaimer: All product features and technical specifications stated are subjected to Z CAM’s sole interpretation and explanation. Specifications are subject to change without notice.

Camera

Sensor Type

Full Frame CMOS Sensor

Sensor Size

37.09 x 24.75 mm

Effective Pixels

26M

Dynamic Range

15 Stops

Lens Mount

EF mount (with optional M, MFT, PL and LPL mount accessory)

Recording

Resolution & Max Frame Rate

6064x4040 @30fps max (Open Gate)
6064x3196 @48fps max (C6K)
5760x3240 @48fps max (6K UHD)
6064x2560 @60fps max (6K 2.4:1)
5376x4032 @30fps max (5K 4:3)
4848x4040 @30fps max (5K 6:5)
5120x2700 @60fps max (C5K)
4800x2700 @60fps max (5K UHD)
4064x2712 @60fps max (C4K 3:2)
4096x2160 @90fps max (C4K)
3840x2160 @90fps max (4K UHD) *
4096x1728 @120fps max (4K 2.4:1)
2112x1188 @170fps max (S16 16:9)
1920x1080 @120fps max (FHD)

* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode

Video Encoder

ProRes 422 Proxy, ProRes 422 LT, ProRes 422, ProRes 422 HQ

Color Bit-depth

10 bit, Z-Log2

Audio Format

16-bit 48 kHz

Audio Encoder

AAC / PCM (for MOV only)

File Format

MOV / MP4

Record Mode

Video / Time Lapse Video

Settings

ISO

Auto, Manual (400 ~ 51200), Dual Native ISO: 400 / 2500

Shutter

Shutter Speed: Auto, Manual (1”~ 1/8000”)
Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance

Auto, Preset, Manual (2300K ~ 7500K)

Focus Mode

MF / AF / CAF


Brightness / Contrast / Saturation / Sharpness

Image Config

Rec.709, Z-log2, Flat, Concert, HLG

Time Code

Current Time / Manual Input

Storage

Storage Media

CFast 2.0 or ZBlade (custom media)

File System

exFAT

Connectivity

HDMI

HDMI Type A 2.0
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit
48K 2ch audio

SDI

12G BNC
3840x2160/4096x2160/1920x1080 @23.94/24/25/29.97/50/59.94
YUV 422 10bit
48K 2ch audio

Time Code In

LTC, share the same BNC with Genlock

Genlock

BB/Tri-level
25/29.97/50/59.94
Share the same BNC with Time Code In

USB

USB 3.0 Type C for camera control & data transfer only

COM

1 x Serial Port

Remote Port

2.5 mm jack socket (Sony LANC compatible)

Audio In

3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)

Audio Out

3.5 mm stereo jack socket

Wi-Fi

5G, up to 802.11n, external dual antenna port

CTRL

1x Serial Control Port

Ethernet

Gigabit Ethernet port for control, setting & live streaming

Monitor (Included in standard package)

Monitor

5" Touch Screen LCD Monitor, 1000 Nits

Resolution

1920 x 1080

Mount

Top & Bottom 1/4" screw hole with anti-rotational pin (mount holder included in standard package)

Power

Through dedicated control cable to camera body

Touchscreen

Capacitive touch panel, calibration to Rec.709

Power

Battery

V-Mount 14.8V (Battery not included)

Power Input

DC 12~18V (2-pin LEMO socket), with LEMO connector

Power Output (AUX)

DC 12V 3A max (2-pin LEMO socket)

Power Consumption

50W maximum, not inclusive of AUX power consumption

Physical

Camera Body

Aluminium Alloy

Weight - Camera

1.39kg (with EF mount)

Weight - Camera + Monitor

1.68kg (with EF mount)

Dimensions (HxWxL) - Camera

108.5 x 107.9 x 156.7mm (with EF mount)

Dimensions (HxWxL) - Monitor

90.6x152.2x26.3mm

Environment

Storage Temperature

-20 °C ~ 60 °C

Operation Temperature
