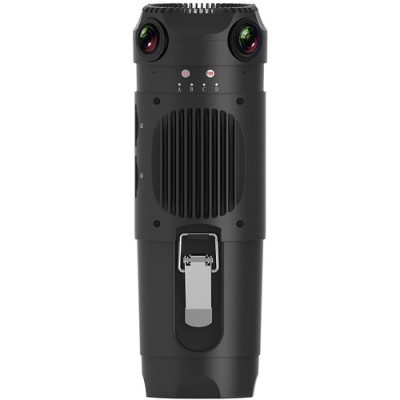

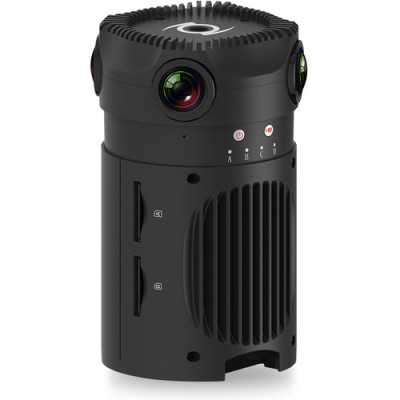

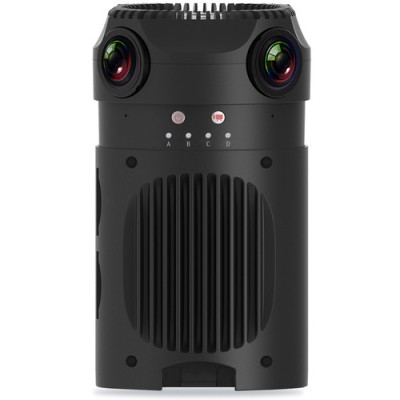

The compacts S1 Professional VR Camera from Z CAM employs four Sony CMOS image sensors to capture high-quality spherical VR video at 6K30 or 4K60 fps. Use the included Z CAM's WonderLive and WonderStitch software downloads for live streaming and offline stitching of 4K60 fps equirectangular images with your Windows 10-based PC.
Its four fisheye lenses are constructed with 10-layer, professional-grade optics, minimizing distortion and flare. Unlike rig-based VR systems, the S1's four integrated sensors provide coordinated auto-exposure and white balance functions. The built-in Z CAM Sync Hardware ensures synchronized recording, and Z-Log gamma enables image fine-tuning and color grading.

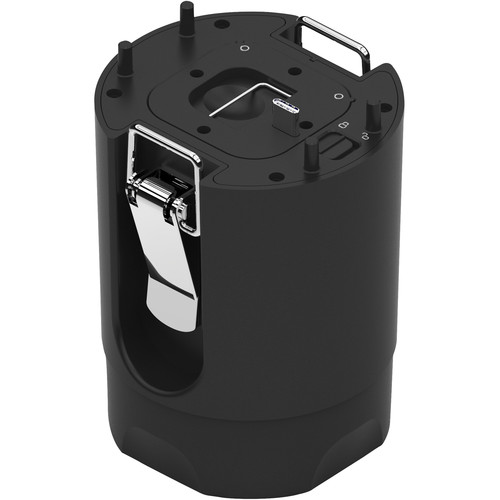

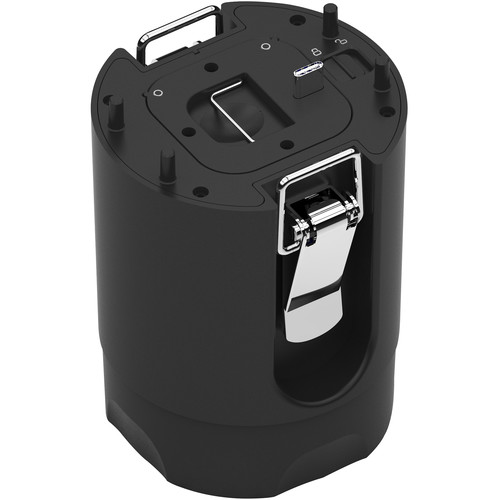

The S1's compact, cylindrical body measures just over 9.5" high when used with its detachable battery unit. When powered via the included AC adapter, the S1 is under 6" high. With a slim, under 4" diameter form, the camera can be placed 2.6' or closer to subjects. SanDisk Extreme Pro cards are recommended for recording to the S1's four SD card slots.
Z CAM Controller Features
System Requirements
For Z CAM Controller:
Windows 10
Disclaimer: All product features and technical specifications stated are subject to Z CAM’s sole interpretation and explanation.
| Spherical Resolution | 6K @30fps / 4K @60fps *post stitching output |
| Individual Sensor Resolution | 3840x2160 @30fps 2704x1520 @60fps |
| Number of lens/sensor modules | 4 |
| Lens | All glass 190º fisheye |
| Image Sensor | Sony EXMOR™ CMOS Image Sensor |
| Video Format | MOV |
| Video Encoder | H.264 |
| ISO | Auto, Manual (ISO 100~6400) |
| Exposure | Auto, Manual, Coordinated |
| White Balance | Auto, Manual, Coordinated |
| Professional Gamma Setting | Z-Log (a proprietary gamma setting for professionals that require more room for color grading.) |
| Synchronization | Built-in Z CAM™ Sync Hardware solution |
| Microphone | 4 x Directional Mono Microphone |
| Audio Encoder | AAC |
| Storage | 4 x SDXC Class 10 SD card. Support up to 128GB. *Recommend using SanDisk Extreme Pro 95MB/s SD card. Not included in the package. |
| HDMI | 4 x Mini HDMI ports, 1080p (up to 60fps) |
| Gigabit Ethernet Port | For control settings (use Z CAM Controller) and live streaming (use Z CAM WonderLive) |
| Power | AC/DC Power Adapter: Input 100V/240V, Output 12V 5A Detachable Battery Unit: Using 4 x 18650 Standard Li-ion Rechargeable Battery Cells B (button top version) *Not included in the package |
| Housing | Full metal housing, Aluminium Alloy |
| Weight | Camera 0.65kg; Battery Unit 0.37kg *not inclusive of battery cells |
| Size & Dimension | Camera 9.2cm x 14.2cm (diameter x height), Battery Unit 7.7cm x 10.4cm (diameter x height) |
