* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance more than 50 thousands hours with fault-free.
* DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
* Dip switch function: 1. LFP; 2. Flow control; 3. Broadcast storm restrain; 4. fiber port 100/1000M selection
* Support 10K Bytes Jumbo frame and 1M large buffer
* Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
* IP40 fan-less and Din-rail hardware design
* Operation temperature: -40 ℃ ~+75℃

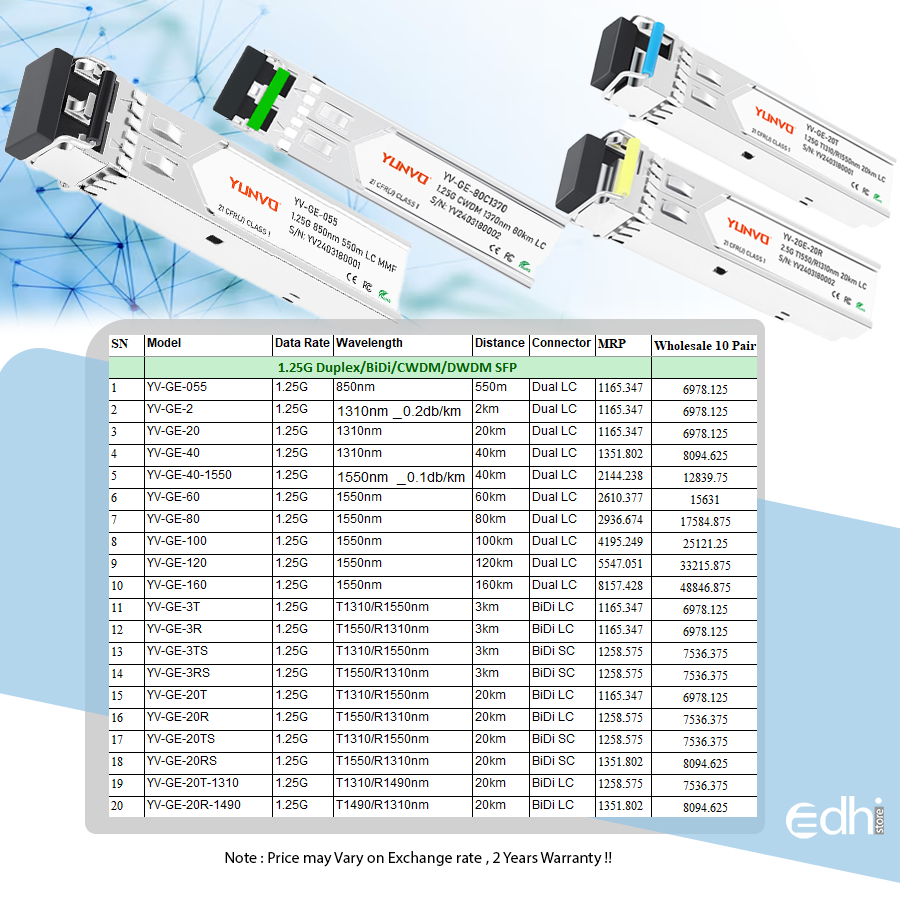

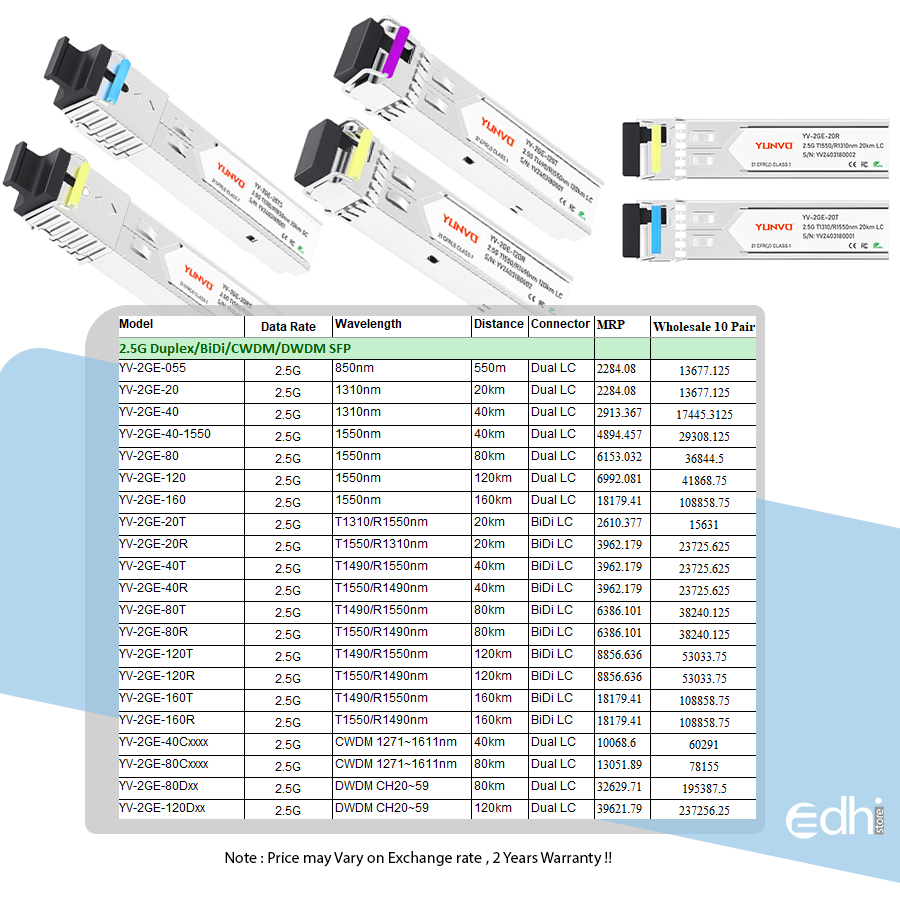

* Hot-pluggable SFP MSA form package, SFP MSA compliant
* Comply with Ethernet/SDH/SONET transmission standard
* VCSEL / DFB transmitter
* Dual LC receptacles
* I2C management interface, Built-in digital diagnostic functions
* Supports a variety of transmission distances from 500m to 120km
* RoHS compliance
* Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)

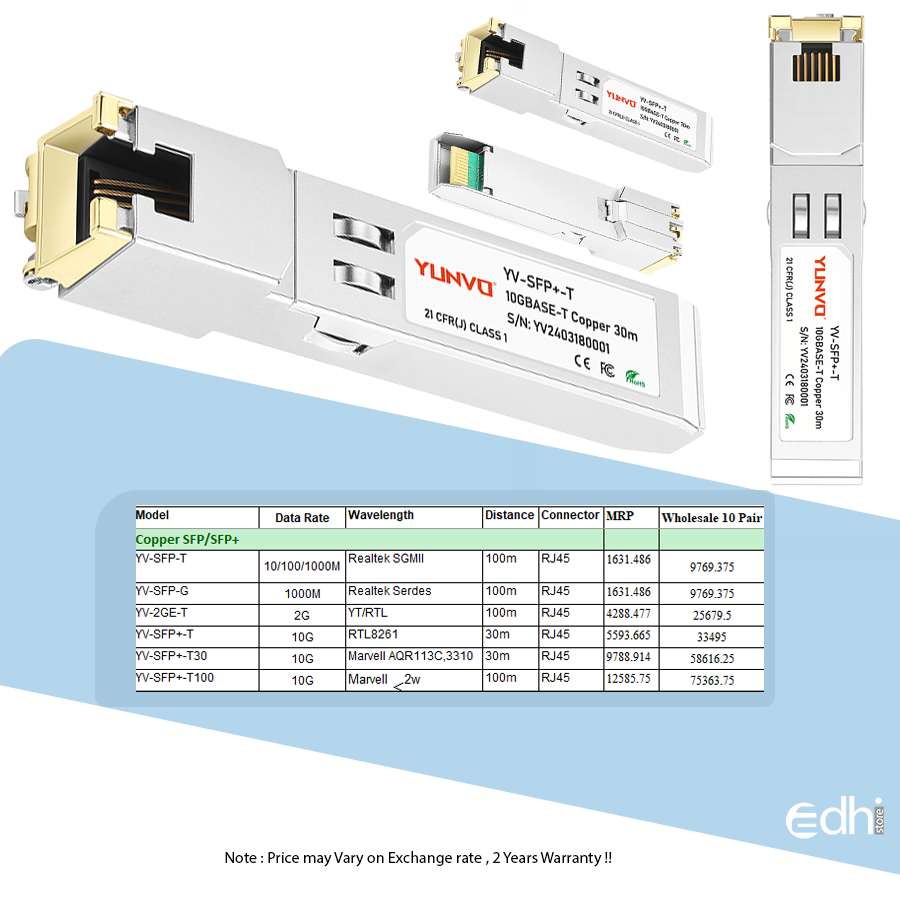

* Support 10/100M, 10/100M, 1000M pure Gigabit three speed available
* Hot-pluggable SFP Package/RJ45 interface
* Support 100m transmission distance
* Fully Metallic Enclosure for Low EMI
* Compliant with SFP MSA
* Compliant with IEEE 802.3
* RoHS compliant
* Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)
* IEEE 802.3af/at power on POE port
* Supply power to wireless access points and surveillance cameras over Cat cable
* POE ports support MDI/MDIX
* POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
* Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Network Media: 10BASE-T: Cat3 or more UTP(≤250 meter);100BASE-TX: Cat5 or more UTP (≤100 meter); Cat6 or more UTP (≤150 meter)
* Working Environment: Operating Temperature: 0 ° ~ 70 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
Features

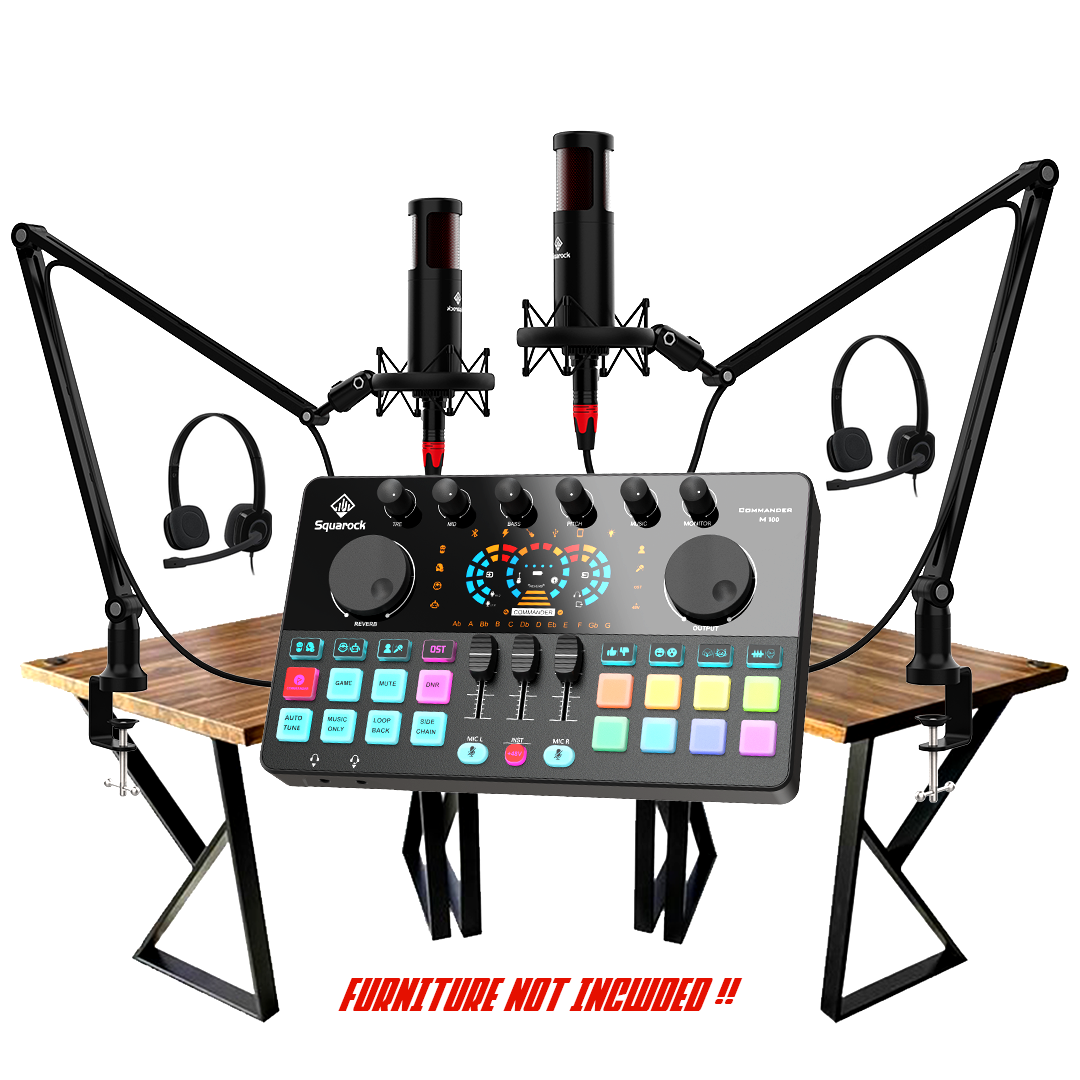

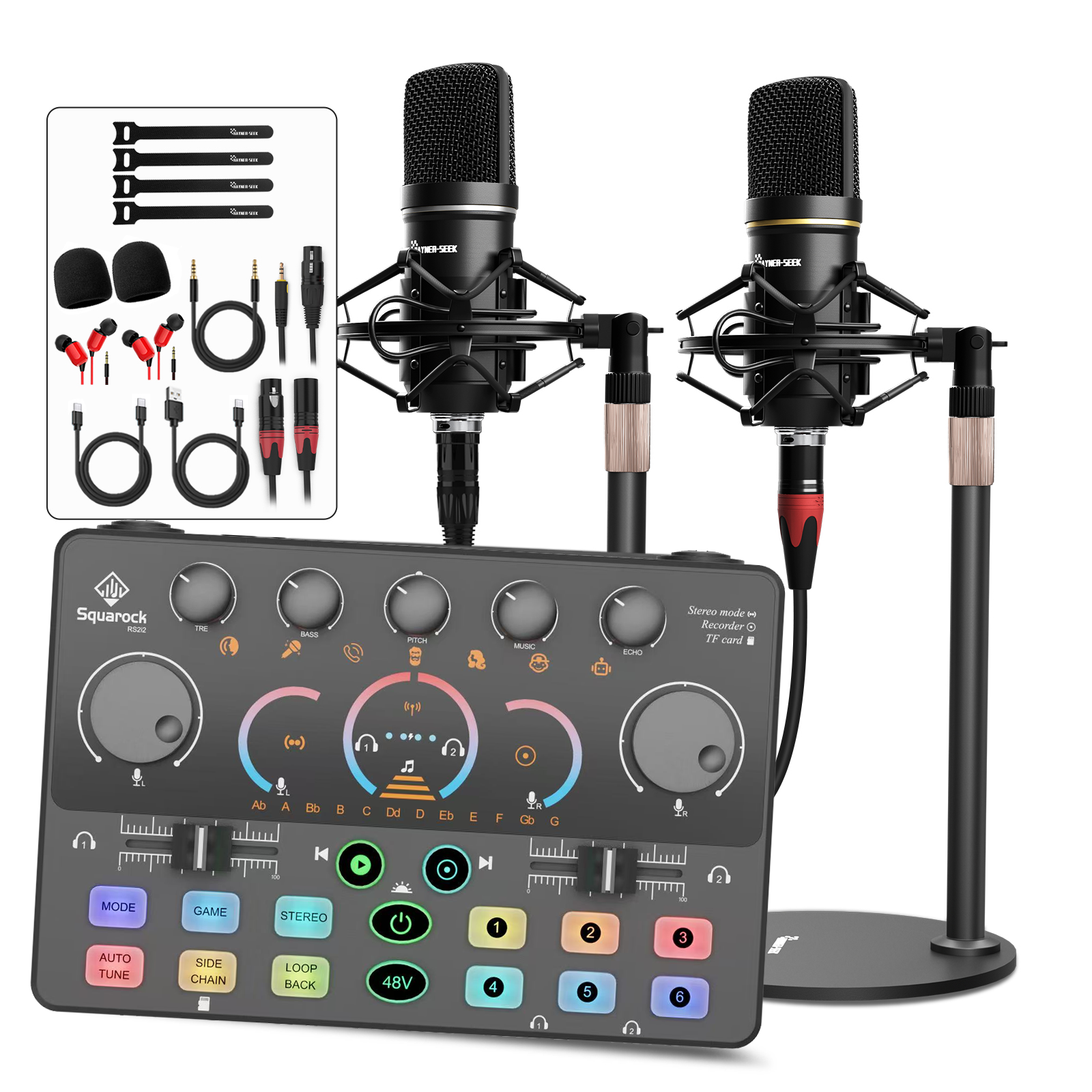

There are 6 small knobs on the top of the M1 panel:
TRE, MID, BASS knobs are for manually adjusting the tone of your voice from the microphone.
The PITCH knob is for adjusting the pitch of the 4 voice-changer modes and HOST, SING, OST 3 sound modes.
The MUSIC knob is for adjusting the volume of accompanying music (this includes Bluetooth music and wired input music from the MUSIC port).
MONITOR is for adjusting the volume of the headphones and speaker. 2 large knobs.
REVERB adjusts the reverb/echo effects of your voice from microphones.
OUTPUT is for adjusting the output audio volume to PHONE or PC ports.
In the middle of the bottom half of the panel, there are 3 slider knobs. The left slider is for adjusting the volume of MIC L group (MIC L1, MIC L2). The mute button is for mute the two mics. The right slider and right mute button are doing the same for MIC R group (MIC R1, MIC R2). The middle slider is for adjusting the volume of instrument.
The red +48V button has nothing to do with the INST slider. The +48V button is the on/off 48V phantom power. It will add 48 volts to the left and right mics (MICL1 and MIC R1). MIC L1 port and MIC R1 port are for 48V condenser microphones. Only when you open red +48V button, the two MIC ports will start work. MIC L2 and MIC R2 are for 5V condenser microphones or dynamic microphones. The microphones in our bundles are condenser. If you want to use your own dynamic mic, you need to switch MIC SETTING to dynamic.
* Compliant with SDH STM64/SONET OC-192/10G FC
* Support Multi-Protocol from 9.9Gb/s to 11.3Gb/s
* Internal integrated 1270nm/1330nm, 1490/1550nm wavelength division multiplexer
* Duplex LC Connector
* 2-wire Interface for Management, Built-in digital diagnostic functions
* low power consumption
* Supports a variety of transmission distances from 10km to 120km
* RoHS compliant
* Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ, IEEE802.1d Spanning Tree.
* Hot Plug-gable & Wall-Mountable.
* Stable performance of more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Stable performance of more than 50 thousand hours with fault-free.
Key Features
* Hot pluggable XFP MSA form package, XFP MSA compliant
* Compliant with SDH STM64/SONET OC-192/10G FC
* Support Multi Protocol from 9.9Gb/s to 11.3Gb/s
* Internal integrated 1270nm/1330nm, 1490/1550nm wavelength division multiplexer
* Single LC Connector
* 2-wire Interface for Management, Built-in digital diagnostic functions
* low power consumption
* Supports a variety of transmission distances from 10km to 100km
* RoHS compliant
* Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)
* QSFP+ to 4*SFP+ module
* QSFP+ Maximum Aggregate Data Rate 40Gbps
* 4*SFP+ Maximum Aggregate Data Rate 4*10Gbps
* QDR,DDR,SDR(Infiniband)
* Bi-directional pararell link
* 10Gb/s per lane,X4 channels
* Up to 100m
* Low profile connectors
* Low power consumption
* Bundle multi-mode fiber array
* 850nm VCSEL four array
* PIN diode four array
* Hot-Pluggable
* I2C management interface
* From 0 to 70 degree case temperature
* 3.3V power supply voltage
* Electrical 38-pin connector
* Hot-pluggable SFP+ MSA form package, SFP+ MSA compliant
* +3.3V power supply
* Supports up to 28.05Gbps bit rates
* Optional fiber channel rate 4.25/8.5/14.025/28.05Gb/s
* I2C management interface
* RoHS compliance
* Operating temperature range: 0~70°C(Commercial) /-40~85℃(industrial)
* IEEE 802.3af/at power on POE port
* Supply power to wireless access points and surveillance cameras over Cat cable
* POE ports support MDI/MDIX
* POE Lines: End-Span(12+,36-), Mid-Span(25+,78-)
* Support IEEE 802.3x flow control for Full-duplex Mode and back-pressure for Half-duplex Mode
* LED indicators for monitoring power, link, activity and speed
* Network Media: 10BASE-T: Cat3 or more UTP(≤250 meter);100BASE-TX: Cat5 or more UTP (≤100 meter); Cat6 or more UTP (≤150 meter)
* Working Environment: Operating Temperature: 0 ° ~ 70 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing
* DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
* Dip switch function: 1.LFP; 2. Flow control; 3. Broadcast storm restrain; 4.fiber port 100/1000M selection
* Support 10K Bytes Jumbo frame and 1M large buffer
* Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
* IP40 fan-less and Din-rail hardware design
* Operation temperature: -40 ℃ ~+75℃
